BORING BARS (S-SCLC-S 95°)
55100216 ~ 55100236
Description
Specification
UNIT: mm

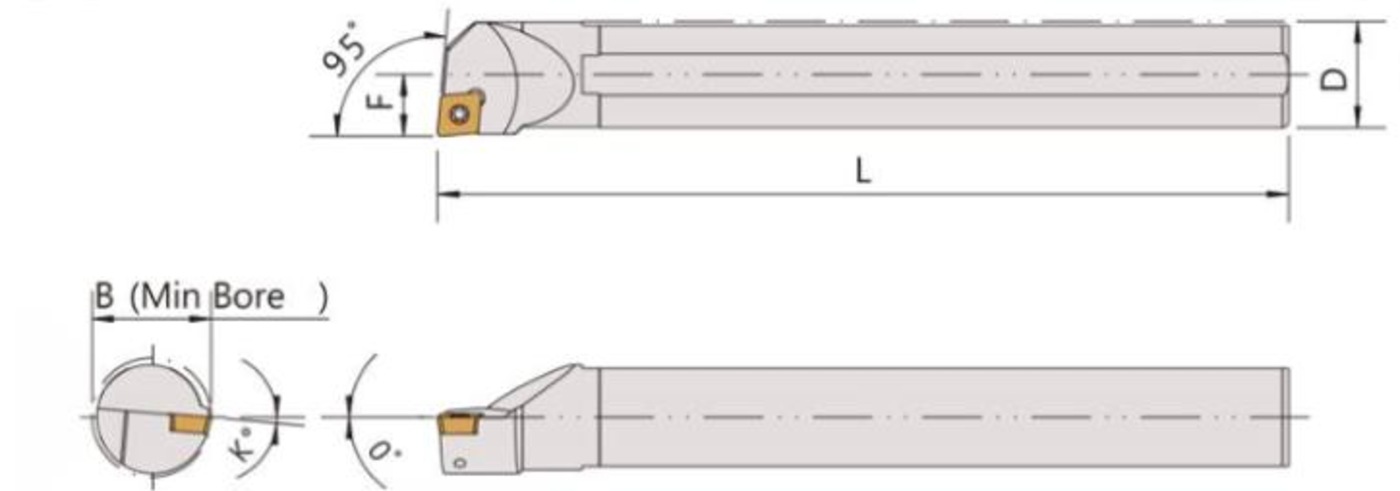

| ITEM NO. | MODEL | INSERT | DIMENSIONS | PARTS | WRENCH | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Right / Left | D | F | L | B | K° | |||||||
| 55100216 R/L | S08H-SCLCR/L06 | CCMT0602 | 8 | 6 | 100 | 12 | 13° | - | - | CS25050 | FT-7 | - |
| 55100217 R/L | S08H-SCLCR/L06-10 | CCMT0602 | 8 | 5 | 100 | 10 | 13° | - | - | CS25050 | FT-7 | - |
| 55100218 R/L | S10K-SCLCR/L06 | CCMT0602 | 10 | 7 | 125 | 14 | 12° | - | - | CS25060 | FT-7 | - |
| 55100219 R/L | S10K-SCLCR/L06-12 | CCMT0602 | 10 | 6 | 125 | 12 | 12° | - | - | CS25060 | FT-7 | - |
| 55100220 R/L | S12M-SCLCR/L06 | CCMT0602 | 12 | 9 | 150 | 16 | 9° | - | - | CS25060 | FT-7 | - |
| 55100221 R/L | S12M-SCLCR/L06-14 | CCMT0602 | 12 | 7 | 150 | 14 | 9° | - | - | CS25060 | FT-7 | - |
| 55100222 R/L | S16Q-SCLCR/L06 | CCMT0602 | 16 | 11 | 180 | 20 | 7° | - | - | CS25060 | FT-7 | - |
| 55100223 R/L | S16Q-SCLCR/L06-18 | CCMT0602 | 16 | 9 | 180 | 18 | 7° | - | - | CS25060 | FT-7 | - |
| 55100224 R/L | S12M-SCLCR/L09 | CCMT09T3 | 12 | 9 | 150 | 16 | 13° | - | - | CS35075 | FT-15 | - |
| 55100225 R/L | S12M-SCLCR/L09-14 | CCMT09T3 | 12 | 7 | 150 | 14 | 13° | - | - | CS35075 | FT-15 | - |
| 55100226 R/L | S16Q-SCLCR/L09 | CCMT09T3 | 16 | 11 | 180 | 20 | 9° | - | - | CS35075 | FT-15 | - |
| 55100227 R/L | S16Q-SCLCR/L09-18 | CCMT09T3 | 16 | 9 | 180 | 18 | 9° | - | - | CS35075 | FT-15 | - |
| 55100228 R/L | S20R-SCLCR/L09 | CCMT09T3 | 20 | 13 | 200 | 25 | 7° | - | - | CS35090 | FT-15 | - |
| 55100229 R/L | S20R-SCLCR/L09-22 | CCMT09T3 | 20 | 11 | 200 | 22 | 5° | - | - | CS35090 | FT-15 | - |
| 55100230 R/L | S25R-SCLCR/L09 | CCMT09T3 | 25 | 17 | 200 | 32 | 5° | - | - | CS35090 | FT-15 | - |
| 55100231 R/L | S25R-SCLCR/L09-28 | CCMT09T3 | 25 | 14.5 | 200 | 28 | 5° | - | - | CS35090 | FT-15 | - |
| 55100232 R/L | S32S-SCLCR/L09 | CCMT09T3 | 32 | 17.5 | 250 | 40 | 5° | - | - | CS35090 | FT-15 | - |
| 55100233 R/L | S20R-SCLCR/L12 | CCMT1204 | 20 | 13 | 200 | 25 | 8° | - | - | CS40115 | FT-15 | - |
| 55100234 R/L | S25R-SCLCR/L12 | CCMT1204 | 25 | 17 | 200 | 32 | 8° | - | - | CS40115 | FT-15 | - |
| 55100235 R/L | S32S-SCLCR/L12S | CCMT1204 | 32 | 22 | 250 | 40 | 6° | SMC-543 | SN630 | CS40145 | FT-15 | LW040 |
| 55100236 R/L | S40T-SCLCR/L12S | CCMT1204 | 40 | 27 | 300 | 50 | 4° | |||||
