EXTERNAL TURNING TOOL (DTJN 93° - D TYPE)
55101167, 55101168, 55101169
Description
Specification
UNIT: mm

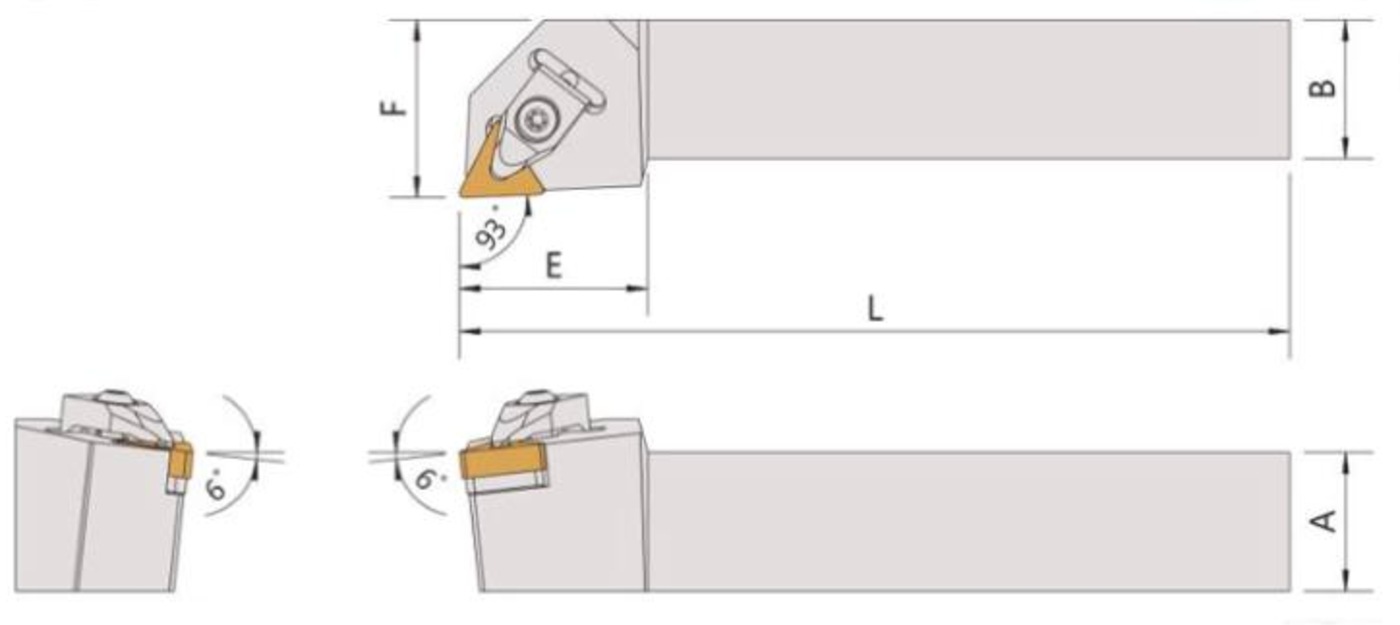

| ITEM NO. | MODEL | INSERT | DIMENSIONS | PARTS | WRENCH | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Right / Left | A | B | L | E | F | ||||||||
| 55101167 R/L | DTJNR/L1616H16 | TNMG1604 | 16 | 16 | 100 | 32 | 20 | SMT-323 | CS40075 | CP-D2 | SP0612 | CSB0415T | TL15 |
| 55101168 R/L | DTJNR/L2020K16 | 20 | 20 | 125 | 32 | 25 | SMT-323 | CS40075 | CP-D2 | SP0612 | CSB0415T | TL15 | |
| 55101169 R/L | DTJNR/L2525M16 | 25 | 25 | 150 | 32 | 32 | SMT-323 | CS40075 | CP-D2 | SP0612 | CSB0415T | TL15 | |
