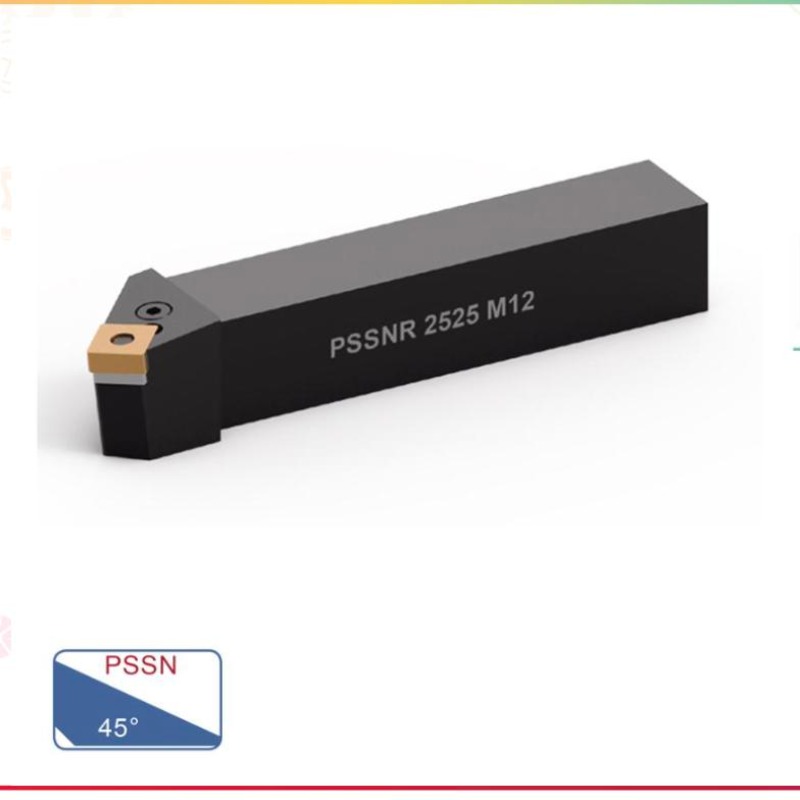

EXTERNAL TURNING TOOL (PSSN 45°)
55100935, 55100936, 55100937, 55100938
Description
Specification
UNIT: mm

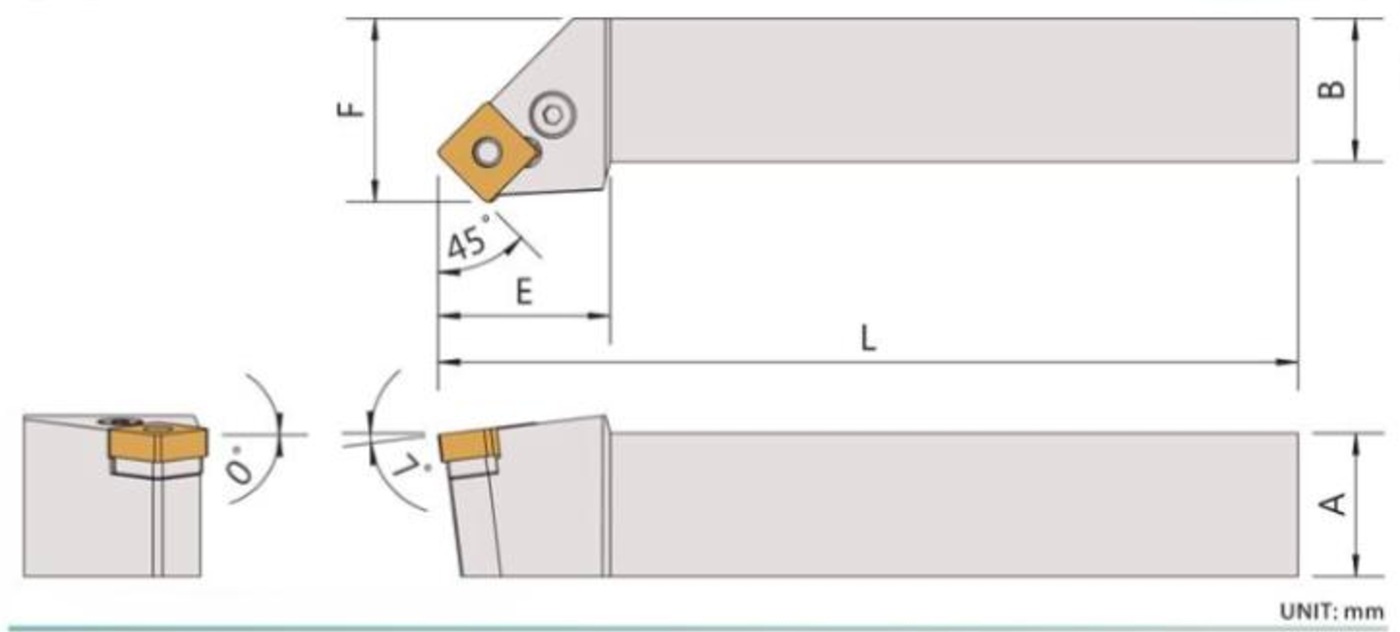

| ITEM NO. | MODEL | INSERT | DIMENSIONS | PARTS | WRENCH | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Right / Left | A | B | L | E | F | |||||||
| 55100935 R/L | PSSNR/L-2020K12 | SNMG1204 | 20 | 20 | 125 | 30 | 25 | SMS-422 | CS-LSP4 | CP-LL4 | CS-LS4 | LW030 |
| 55100936 R/L | PSSNR/L-2525M12 | SNMG1204 | 25 | 25 | 150 | 30 | 32 | SMS-422 | CS-LSP4 | CP-LL4 | CS-LS4 | LW030 |
| 55100937 R/L | PSSNR/L-3225P12 | SNMG1204 | 32 | 25 | 170 | 30 | 32 | SMS-422 | CS-LSP4 | CP-LL4 | CS-LS4 | LW030 |
| 55100938 R/L | PSSNR/L-3232P12 | SNMG1204 | 32 | 32 | 170 | 35 | 40 | SMS-422 | CS-LSP4 | CP-LL4 | CS-LS4 | LW030 |
