EXTERNAL TURNING TOOL (PCKN 75°)
55100906, 55100907, 55100908, 55100909
Description

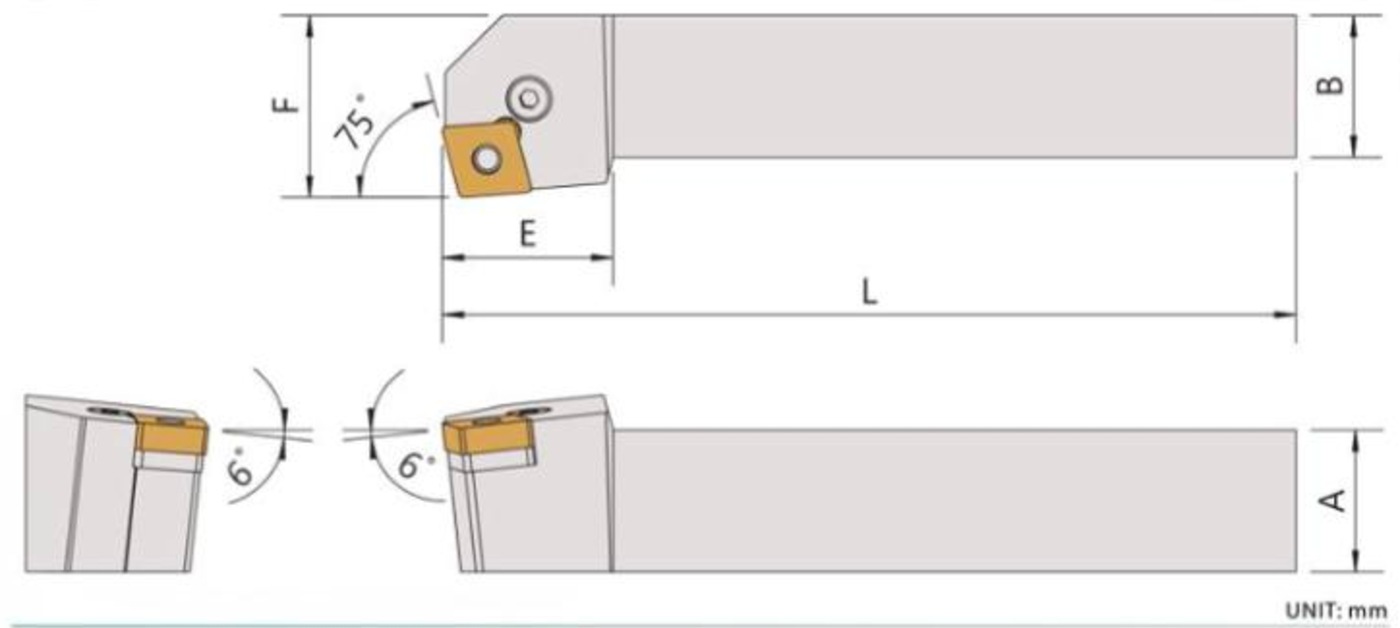

Specification
UNIT: mm
| ITEM NO. | MODEL | INSERT | DIMENSIONS | PARTS | WRENCH | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Right / Left | A | B | L | E | F | |||||||
| 55100906 R/L | PCKNR/L-2020K12 | CNMG1204 | 20 | 20 | 125 | 30 | 25 | SMC-422 | CS-LSP4 | CP-LL4 | CS-LS4 | LW030 |
| 55100907 R/L | PCKNR/L-2525M12 | CNMG1204 | 25 | 25 | 150 | 30 | 32 | SMC-422 | CS-LSP4 | CP-LL4 | CS-LS4 | LW030 |
| 55100908 R/L | PCKNR/L-3225P12 | CNMG1204 | 32 | 25 | 170 | 30 | 32 | SMC-422 | CS-LSP4 | CP-LL4 | CS-LS4 | LW030 |
| 55100909 R/L | PCKNR/L-3232P12 | CNMG1204 | 32 | 32 | 170 | 30 | 40 | SMC-422 | CS-LSP4 | CP-LL4 | CS-LS4 | LW030 |
