EXTERNAL TURNING TOOL (WTXN 100°)
55100888, 55100889
Description
Specification

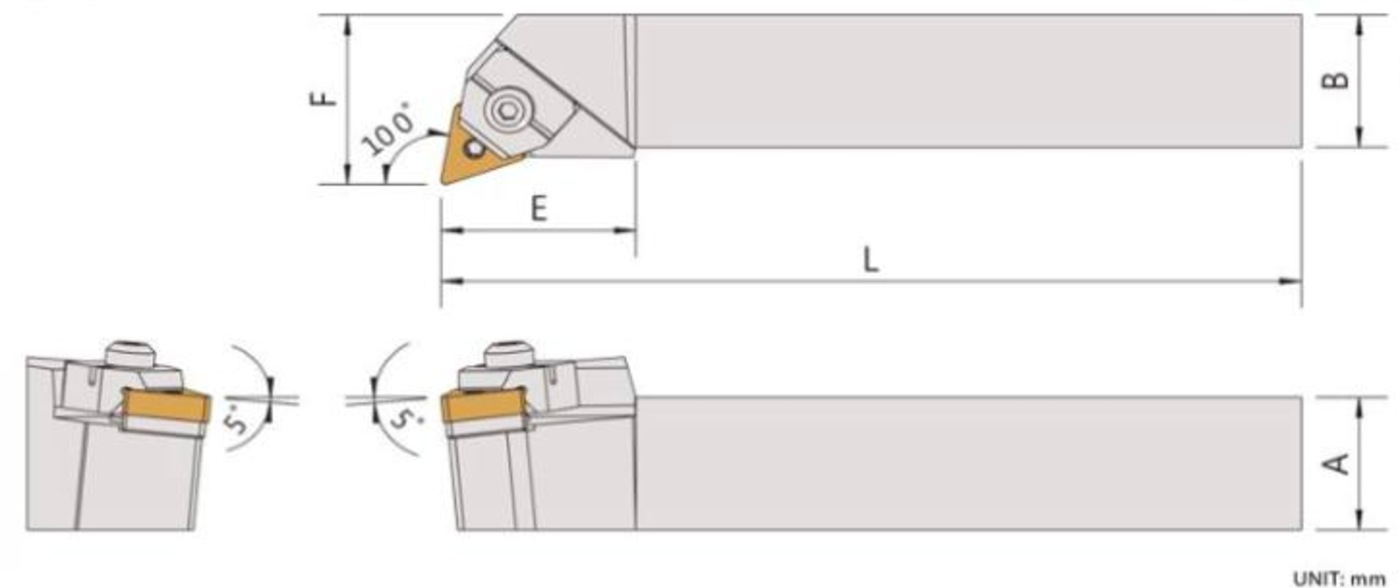

UNIT: mm
| ITEM NO. | MODEL | INSERT | DIMENSIONS | PARTS | WRENCH | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Right / Left | A | B | L | E | F | |||||||||
| 55100888 R/L | WTXNR/L-2020K16 | TNMG1604 | 20 | 20 | 125 | 33 | 25 | SMT-322 | LCS-420N | MWW-30 | CSE5026 | ER-4 | LW025 | LW030 |
| 55100889 R/L | WTXNR/L-2525M16 | TNMG1604 | 25 | 25 | 150 | 34 | 32 | SMT-322 | LCS-420N | MWW-30 | CSE5026 | ER-4 | LW025 | LW030 |
