EXTERNAL TURNING TOOL (MVJN 93°)
55100870, 55100871, 55100872, 55100873
Description
Specification

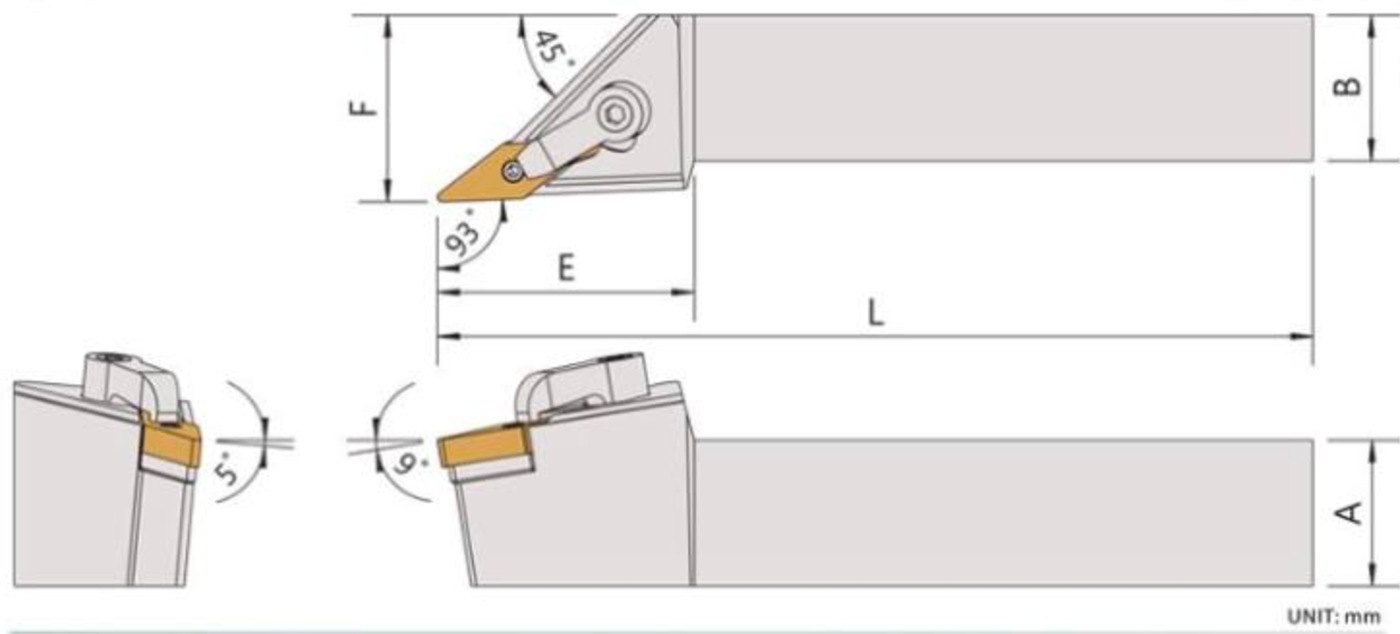

UNIT: mm
| ITEM NO. | MODEL | INSERT | DIMENSIONS | PARTS | WRENCH | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Right / Left | A | B | L | E | F | ||||||||
| 55100870 R/L | MVJNR/L-2020K16 | VNMG1604 | 20 | 20 | 125 | 39 | 25 | SMV-322 | LCS-513 | CP50-25 | CS7-6030 | LW020 | LW030 |
| 55100871 R/L | MVJNR/L-2525M16 | VNMG1604 | 25 | 25 | 150 | 44 | 32 | SMV-322 | LCS-513 | CP50-25 | CS7-6030 | LW020 | LW030 |
| 55100872 R/L | MVJNR/L-3225P16 | VNMG1604 | 32 | 25 | 170 | 44 | 32 | SMV-322 | LCS-513 | CP50-25 | CS7-6030 | LW020 | LW030 |
| 55100873 R/L | MVJNR/L-3232P16 | VNMG1604 | 32 | 32 | 170 | 45 | 40 | SMV-322 | LCS-513 | CP50-25 | CS7-6030 | LW020 | LW030 |
