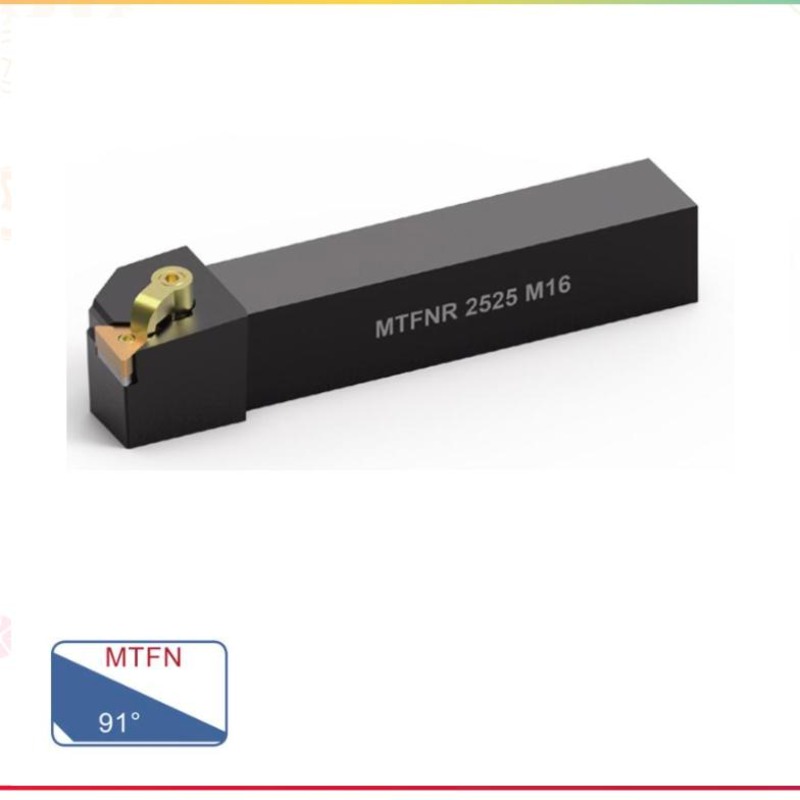

EXTERNAL TURNING TOOL (MTFN 91°)
55100867, 55100868, 55100869
Description
Specification

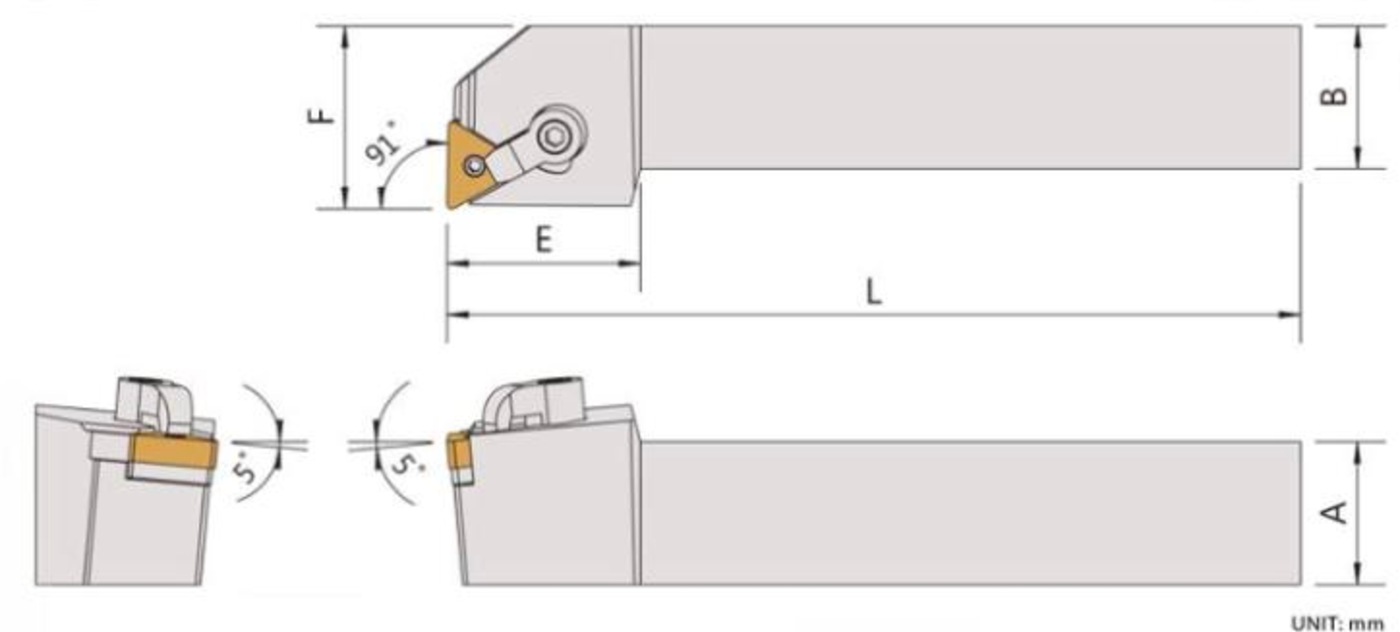

UNIT: mm
| ITEM NO. | MODEL | INSERT | DIMENSIONS | PARTS | WRENCH | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Right / Left | A | B | L | E | F | ||||||||
| 55100867 R/L | MTFNR/L-1616H16 | TNMG1604 | 16 | 16 | 100 | 30 | 20 | SMT-322 | LCS-513 | CP50-22 | CS7-6024 | LW020 | LW030 |
| 55100868 R/L | MTFNR/L-2020K16 | TNMG1604 | 20 | 20 | 125 | 34 | 25 | SMT-322 | LCS-513 | CP50-22 | CS7-6030 | LW020 | LW030 |
| 55100869 R/L | MTFNR/L-2525M16 | TNMG1604 | 25 | 25 | 150 | 34 | 32 | SMT-322 | LCS-513 | CP50-22 | CS7-6030 | LW020 | LW030 |
