EXTERNAL TURNING TOOL (MTXN 100°)
55100832, 55100833
Description
Specification

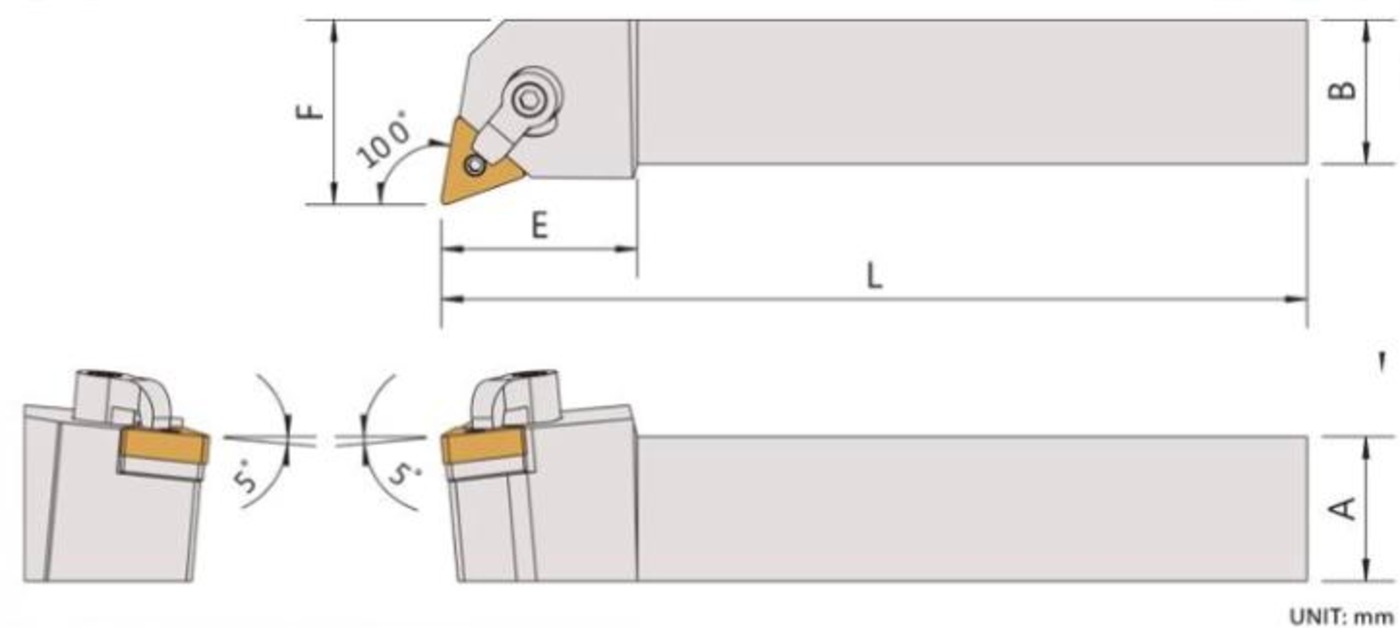

UNIT: mm
| ITEM NO. | MODEL | INSERT | DIMENSIONS | PARTS | WRENCH | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Right / Left | A | B | L | E | F | |||||||
| 55100832 R/L | MTXNR/L-2020K16 | TNMG1604 | 20 | 20 | 125 | 34 | 25 | SMT-322 | LCS-513 | CP50-22 | CS7-6030 | LW020 |
| 55100833 R/L | MTXNR/L-2525M16 | TNMG1604 | 25 | 25 | 150 | 34 | 32 | SMT-322 | LCS-513 | CP50-22 | CS7-6030 | LW032 |
