EXTERNAL TURNING TOOL (MDQN 107.5°)
55100775, 55100776, 55100777, 55100778, 55100779, 55100780, 55100781, 55100782
Description
Specification

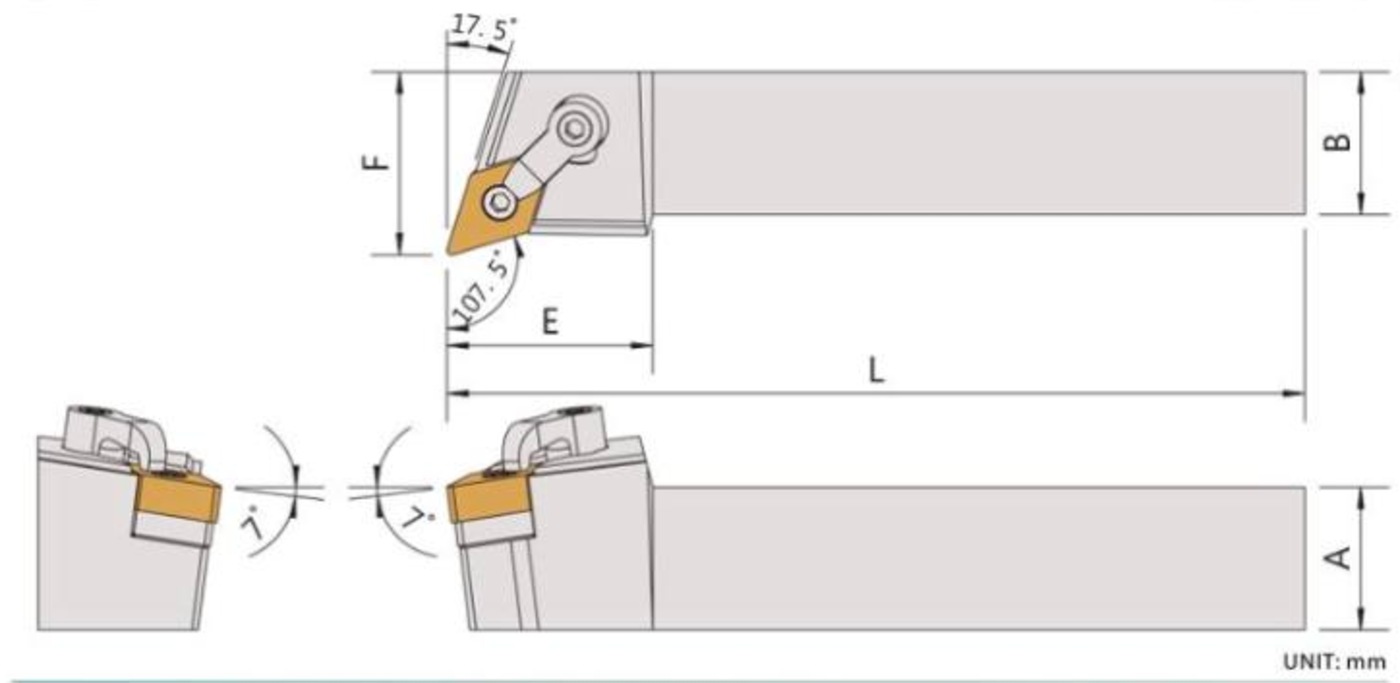

UNIT: mm
| ITEM NO. | MODEL | INSERT | DIMENSIONS | PARTS | WRENCH | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Right / Left | A | B | L | E | F | |||||||
| 55100775 R/L | MDQNR/L-2020K1504 | DNMG1504 | 20 | 20 | 125 | 36 | 25 | SMD-463 | LCS-619 | CP50-24 | CS7-6030 | LW030 |
| 55100776 R/L | MDQNR/L-2525M1504 | DNMG1504 | 25 | 25 | 150 | 36 | 32 | SMD-463 | LCS-619 | CP50-24 | CS7-6030 | LW030 |
| 55100777 R/L | MDQNR/L-3225P1504 | DNMG1504 | 32 | 25 | 170 | 40 | 32 | SMD-463 | LCS-619 | CP50-24 | CS7-6030 | LW030 |
| 55100778 R/L | MDQNR/L-3232P1504 | DNMG1504 | 32 | 32 | 170 | 40 | 40 | SMD-463 | LCS-619 | CP50-24 | CS7-6030 | LW030 |
| 55100779 R/L | MDQNR/L-2020K1506 | DNMG1506 | 20 | 20 | 125 | 36 | 25 | SMD-443 | LCS-619 | CP50-24 | CS7-6030 | LW030 |
| 55100780 R/L | MDQNR/L-2525M1506 | DNMG1506 | 25 | 25 | 150 | 36 | 32 | SMD-443 | LCS-619 | CP50-24 | CS7-6030 | LW030 |
| 55100781 R/L | MDQNR/L-3225P1506 | DNMG1506 | 32 | 25 | 170 | 40 | 32 | SMD-443 | LCS-619 | CP50-24 | CS7-6030 | LW030 |
| 55100782 R/L | MDQNR/L-3232P1506 | DNMG1506 | 32 | 32 | 170 | 40 | 40 | SMD-443 | LCS-619 | CP50-24 | CS7-8030 | LW030 |
