MULTIPLE SPINDLE BORING HEADS FOR WOOD B SERIES-ROUND QUICK ADAPTORS TYPE

54101402, 54101403, 54101404, 54101405, 54101406, 54101407, 54101408, 54101409, 54101410 ~ 54101417

UNIT: mm

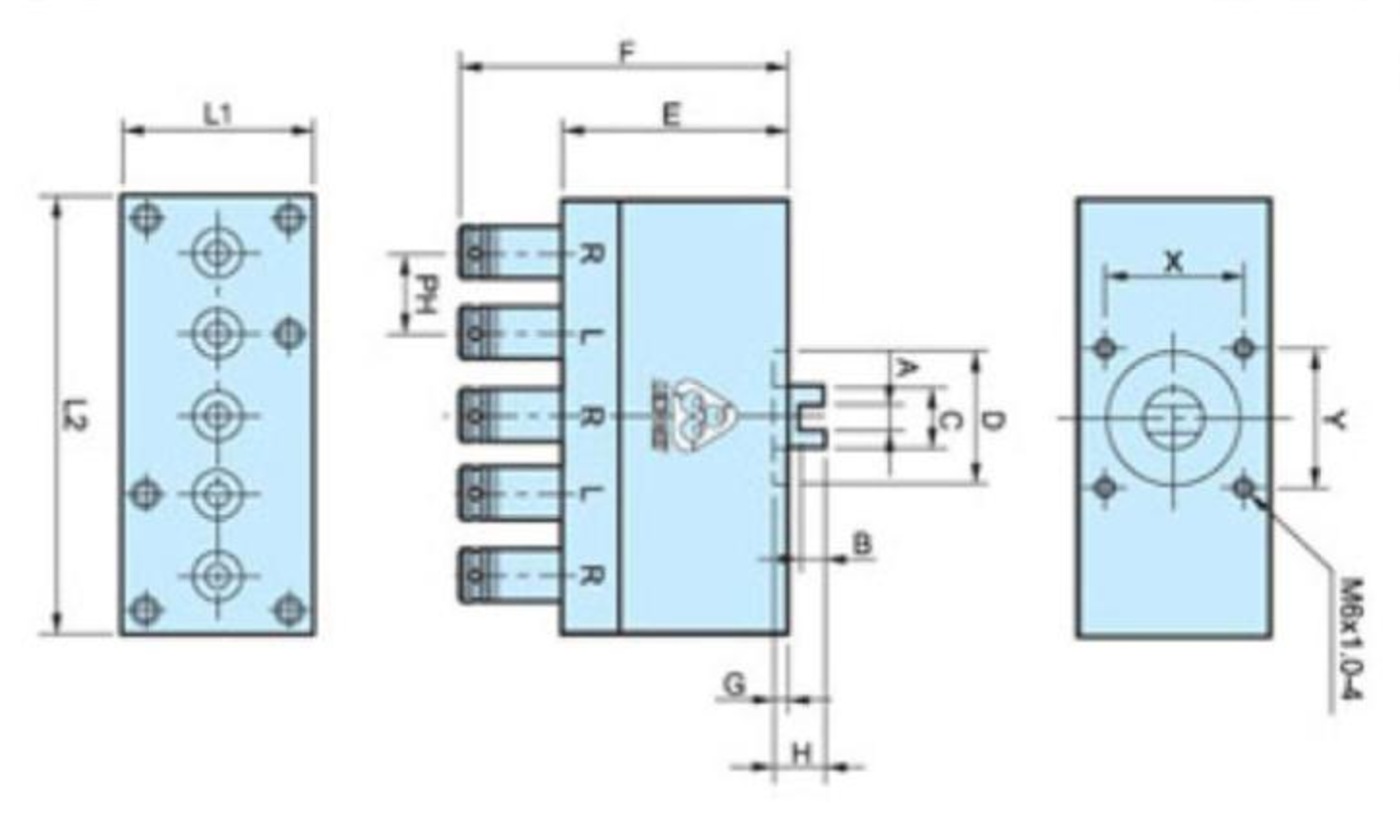

ITEM NO.	MODEL	DIMENSIONS												SPACING	MAX CAPACITY	THREAD	WEIGHT (kgs)
ITEM NO.	MODEL	A	B	C	D	E	F	G	H	L1	L2	X	Y	PH	MAX CAPACITY	THREAD	WEIGHT (kgs)
54101402	3L-20	10	10	28	55	53	77	3	24	62	90	46	74	20 mm × 3	Ø15	M8×1.25, M10 × 1.5	2.9
54101403	3L-22	10	10	28	55	53	77	3	24	62	90	46	74	22 mm × 3	Ø15	M8×1.25, M10 × 1.5	2.9
54101404	3L-25	10	10	28	55	53	77	3	26	62	90	46	74	25 mm × 3	Ø15	M8×1.25, M10 × 1.5	2.9
54101405	3L-30	10	10	28	55	53	77	3	24	62	120	46	88.8	30 mm × 3	Ø20	M8×1.25, M10 × 1.5	2.5
54101406	3L-32	10	10	28	55	53	77	3	24	62	120	46	88.8	32 mm × 3	Ø20	M8×1.25, M10 × 1.5	2.5
54101407	3L-38	10	10	28	55	53	77	3	24	62	145	46	88.8	38 mm × 3	Ø20	M8×1.25, M10 × 1.5	3.6
54101408	5L-20	10	10	28	55	53	77	3	24	62	120	46	88.8	20 mm × 5	Ø15	M8×1.25, M10 × 1.5	2.4
54101409	5L-22	10	10	28	55	53	77	3	24	62	120	46	88.8	22 mm × 5	Ø15	M8×1.25, M10 × 1.5	2.4
54101410	5L-25	10	10	28	55	53	77	3	24	62	145	46	88.8	25 mm × 5	Ø15	M8×1.25, M10 × 1.5	3.8
54101411	5L-30	10	10	28	55	53	77	3	26	62	176	46	88.8	30 mm × 5	Ø20	M8×1.25, M10 × 1.5	3.2
54101412	5L-32	10	10	28	55	53	77	3	24	62	176	46	88.8	32 mm × 5	Ø20	M8×1.25, M10 × 1.5	3.2
54101413	7L-32	10	10	28	55	53	77	3	24	62	245	46	88.8	32mm × 7	Ø15	M8×1.25, M10 × 1.5	4
54101414	9L-32	10	10	28	55	53	77	3	24	62	308	46	88.8	32 mm × 9	Ø15	M8×1.25, M10 × 1.5	4.5
54101415	11L-32	10	10	28	55	53	77	3	24	62	365	46	88.8	32 mm × 11	Ø15	M8×1.25, M10 × 1.5	5
54101416	15L-32	10	10	28	55	53	77	3	24	62	495	46	88.8	32 mm × 15	Ø15	M8×1.25, M10 × 1.5	6.8
54101417	21L-32	10	10	28	55	53	77	3	24	62	685	46	88.8	32 mm × 21	Ø15	M8×1.25, M10 × 1.5	8.5
