MULTIPLE SPINDLE BORING HEADS FOR METAL
54101118, 54101119, 54101120, 54101121, 54101122
Description
Specification

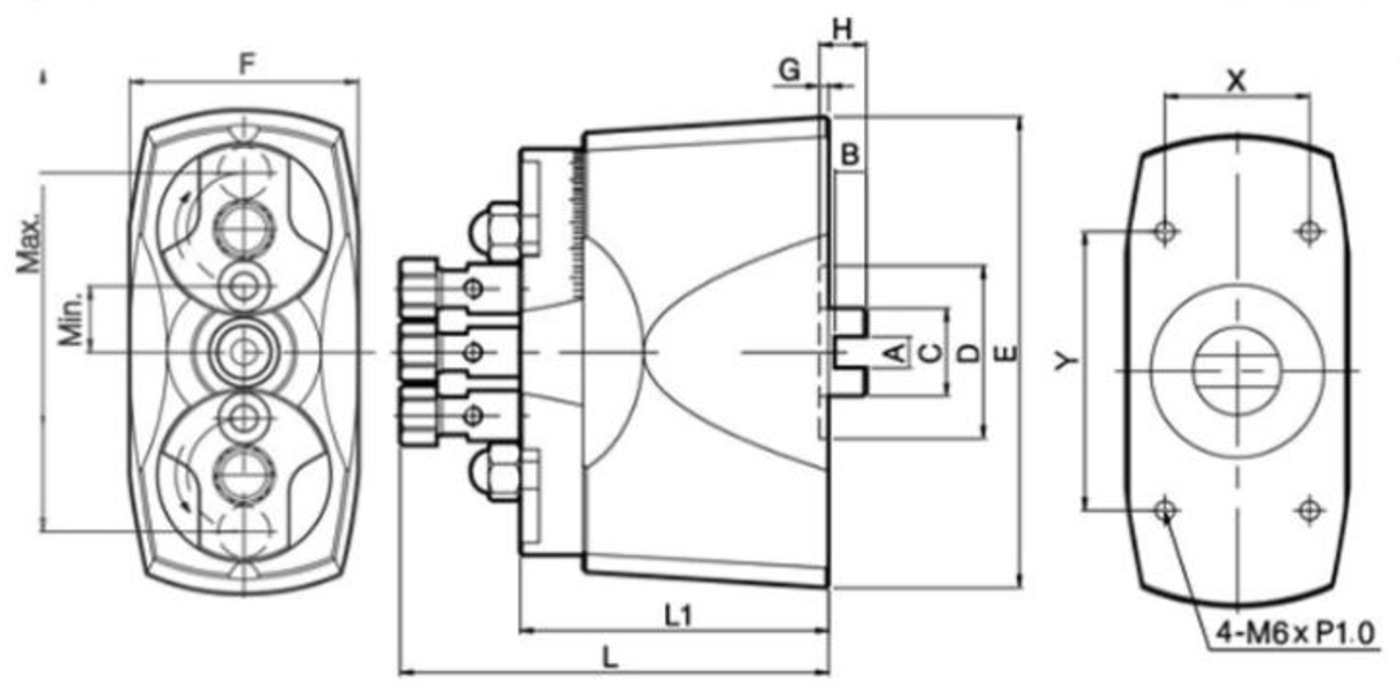

▼ 3-SPINDLE (LINEAR) BORING HEAD (FOR METAL)
- Adjustable spacing between spindles: ø14-ø200 mm.
UNIT: mm
| ITEM NO. | MODEL | DIMENSIONS | SPACING | WEIGHT (kgs) |
|||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | H | L1 | L | X | Y | MIN | MAX | MAX CAPACITY | |||
| 54101118 | 3C-T5 | 10 | 10 | 28 | 55 | 121 | 58 | 3 | 18 | 107 | 132 | 40 | 73.8 | 14 | 88 | Ø5 | 3.7 |
| 54101119 | 3C-T7 | 10 | 10 | 28 | 55 | 150 | 71 | 3 | 17 | 112 | 137 | 46 | 88.8 | 20 | 112 | Ø7 | 4 |
| 54101120 | 3C-T10 | 10 | 10 | 28 | 55 | 162 | 76 | 3 | 17 | 114 | 139 | 46 | 88.8 | 22 | 128 | Ø10 | 6 |
| 54101121 | 3C-T12 | 10 | 10 | 28 | 55 | 191 | 92 | 3 | 15 | 118.5 | 143.5 | 46 | 88.8 | 26 | 152 | Ø12 | 8.7 |
| 54101122 | 3C-T16 | 10 | 10 | 28 | 72 | 251 | 114 | 3 | 16 | 141 | 166 | 70.7 | 70.7 | 36 | 200 | Ø14 | 14.7 |
