ROUND PERMANENT MAGNETIC CHUCKS

ROUND PERMANENT MAGNETIC CHUCKS

ROUND PERMANENT MAGNETIC CHUCKS

53100682, 53100533, 53100534, 53100535, 53100536, 53100537, 53100683, 53100684, 53100685 ~ 53100690

Description

Specification

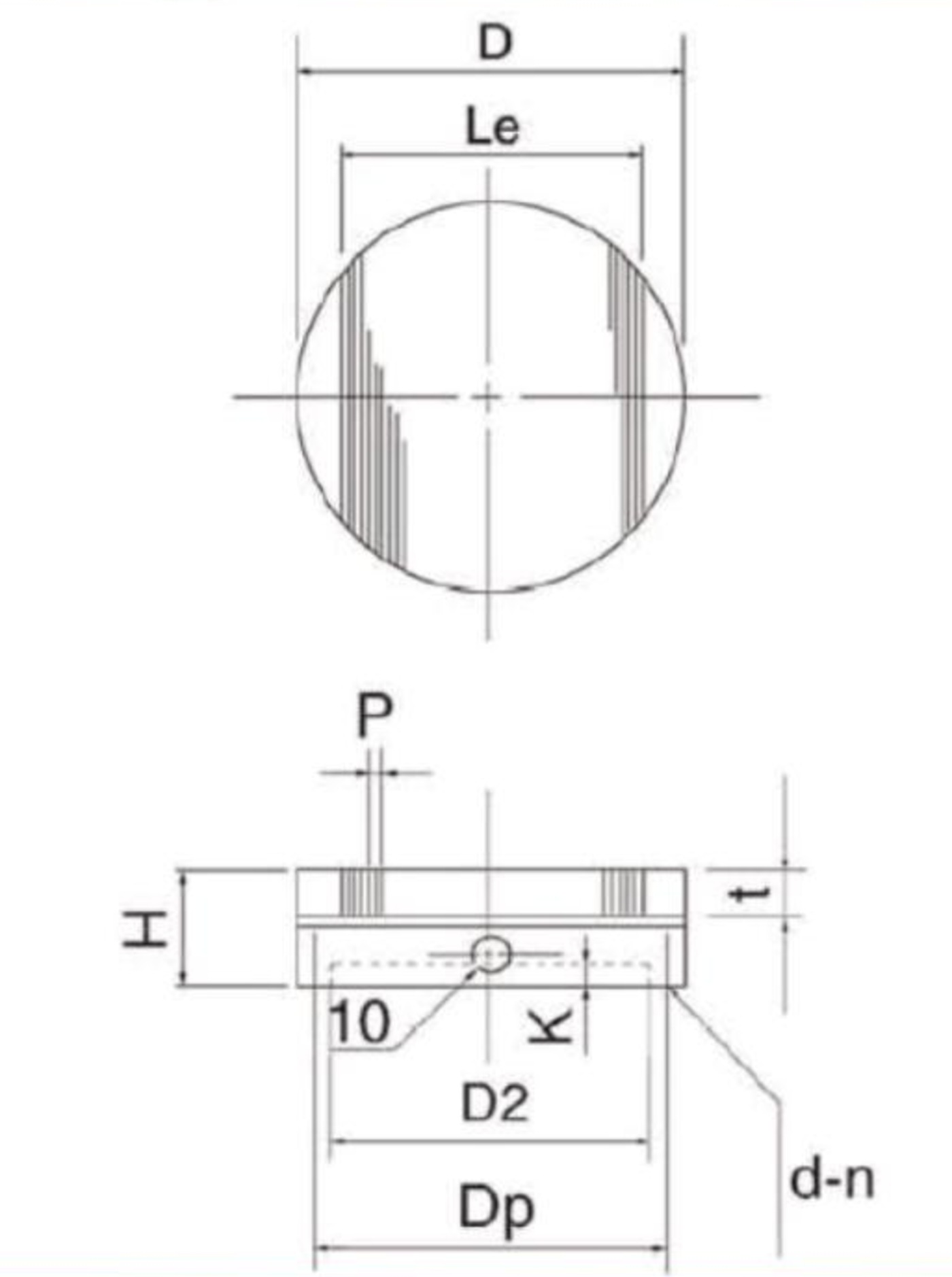

◄ FINE POLE:

UNIT: mm

  ITEM NO. DIMENSION   FACE PLATE POLE PITCH   CHUCK BASE FACE PLATE WEIGHT
DIA D Le P K Dp n d t (kg)
53100682 ø100 x 58 100 67   2
(1+1)		 2 76 3 M6 18 3.7
53100533 ø125 x 58 125 80 2 112 3 M6 18 6.2
53100534 ø160 x 58 160 115 2 140 4 M8 18 9.5
53100535 ø200 x 58 200 155 2 180 4 M8 18 15.0
53100536 ø250 x 58 250 205 2 224 4 M10 18 23.0
53100537 ø300 x 63 300 255 2 260 4 M10 18 36.0
53100683 ø360 x 63 360 300 3 320 4 M10 18 51.0
53100684 ø400 x 63 400 340 3 355 4 M10 18 64.0
53100685 ø500 x 65 500 440   4
(1+3)		 4 400 8 M12 20 105.0
53100686 ø600 x 65 600 540 4 500 8 M12 20 147.0

◄ STANDARD POLE:

UNIT: mm

  ITEM NO. DIMENSION   FACE PLATE POLE PITCH   CHUCK BASE FACE PLATE WEIGHT
DIA D Le P K Dp n d t (kg)
53100538 ø125 x 58 125 80   11
(2+9)		 2 112 3 M6 20 6.2
53100539 ø160 x 58 160 115 2 140 4 M8 20 9.5
53100540 ø200 x 58 200 155 2 180 4 M8 20 15.0
53100541 ø250 x 58 250 205   15
(3+12)		 2 224 4 M10 20 23.0
53100542 ø300 x 58 300 255 2 260 4 M10 20 36.0
53100687 ø360 x 63 360 300 4 320 4 M10 20 51.0
53100688 ø400 x 63 400 340   16
(4+12)		 4 355 4 M10 20 64.0
53100689 ø500 x 65 500 440 4 400 8 M12 20 105.0
53100690 ø600 x 65 600 540 4 500 8 M12 20 147.0
