RECTANGULAR PERMANENT MAGNETIC CHUCKS
53100501, 53100502, 53100503, 53100504, 53100505, 53100506, 53100507, 53100508, 53100509
Description
Specification
UNIT: mm

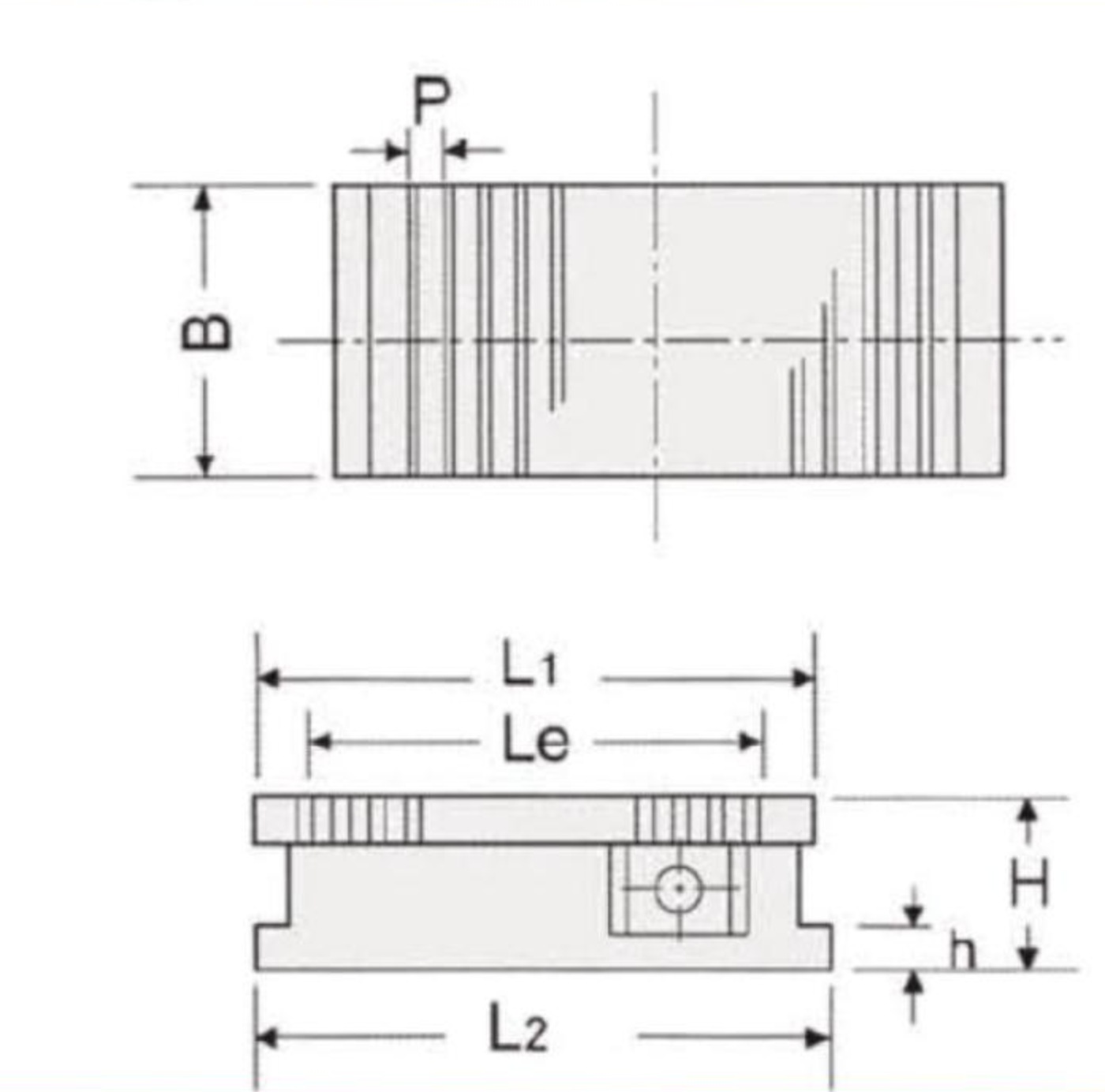

| ITEM NO. | DIMENSION | FACE PLATE | POLE PITCH | BASE PLATE | WEIGHT | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| W x L x H | B | L1 | Le | P | L2 | H | (kgs) | ||||
| 53100501 | 100 x 175 x 63 | 100 | 175 | 125 | 11.2 (1.6+2+1.6+6) |
187 | 13 | 7.3 | |||
| 53100502 | 125 x 250 x 63 | 125 | 250 | 200 | 262 | 10.4 | |||||
| 53100503 | 150 x 300 x 63 | 300 | 246 | 312 | 15.1 | ||||||
| 53100504 | 150 x 350 x 63 | 150 | 350 | 296 | 362 | 17.4 | |||||
| 53100505 | 150 x 450 x 63 | 450 | 396 | 462 | 20.1 | ||||||
| 53100506 | 200 x 400 x 63 | 400 | 346 | 412 | 26.0 | ||||||
| 53100507 | 200 x 450 x 63 | 200 | 450 | 390 | 462 | 30.1 | |||||
| 53100508 | 200 x 500 x 63 | 500 | 446 | 512 | 35.7 | ||||||
| 53100509 | 250 x 500 x 60 | 250 | 500 | 440 | 516 | 59 | |||||
