WIRE EDM DIVIDING DEVICES (ER)
53101008, 53101009, 53101010
Description

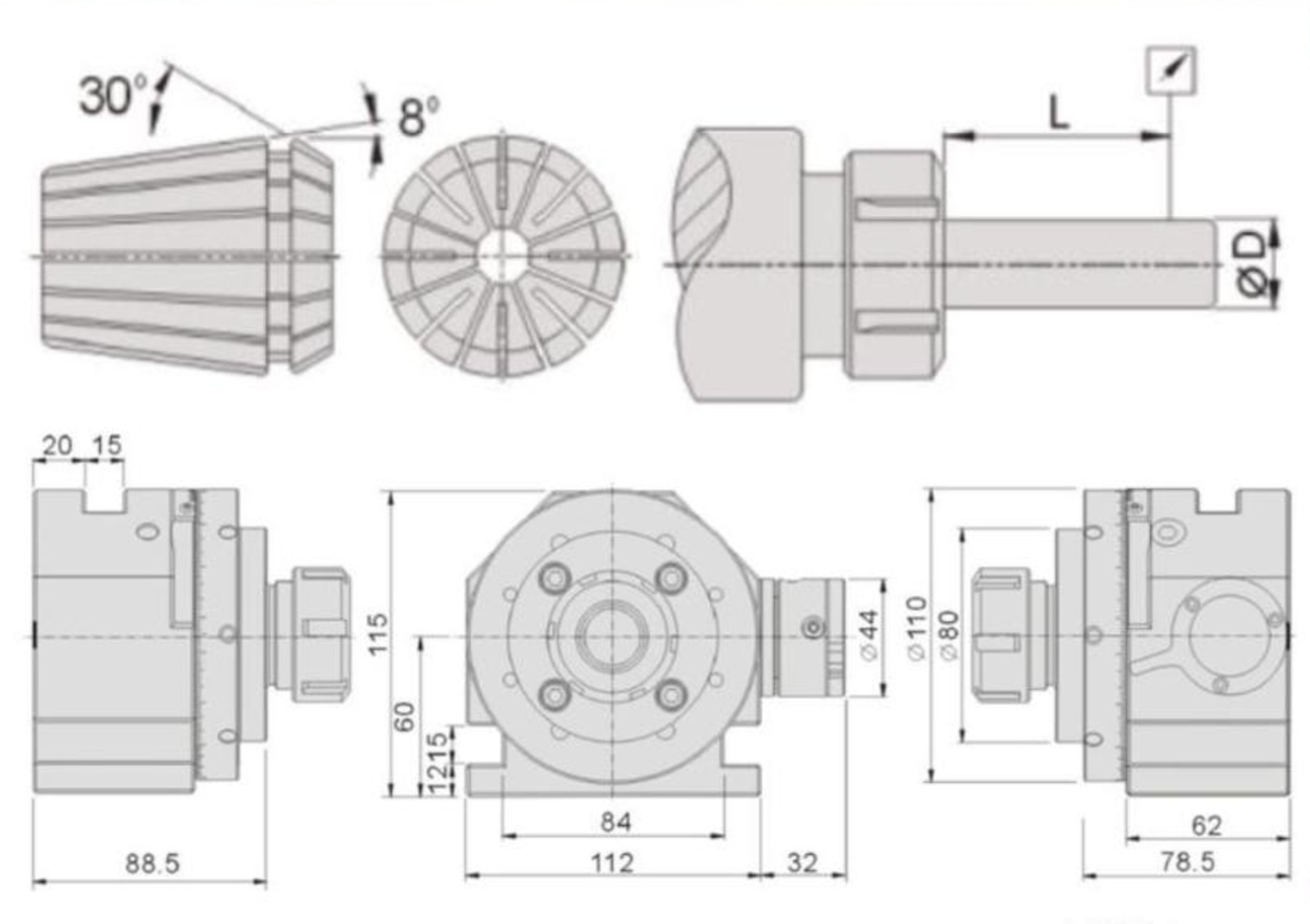

Specification
UNIT: mm
| L | D | ACCURACY |
|---|---|---|
| 6 | 1.0-1.6 | 0.01 |
| 10 | 1.6-3.0 | 0.01 |
| 16 | 3.0-7.0 | 0.01 |
| 25 | 7.0-10.0 | 0.01 |
| 40 | 10.0-18.0 | 0.01 |
| 50 | 18.0-24.0 | 0.01 |
| 60 | 24.0-34.0 | 0.01 |
UNIT: mm
| ITEM NO. | TYPE | ER COLLET SPEC |
|---|---|---|
| 53101008 | SER20 | 3, 4, 6, 8, 10 |
| 53101009 | SER32 | 4, 8, 12, 16, 20 |
| 53101010 | SER50 | 12, 18, 20, 30, 34 |
