PUNCH FORMER (VERTICAL/HORIZONTAL)
53100119
Description
Specification

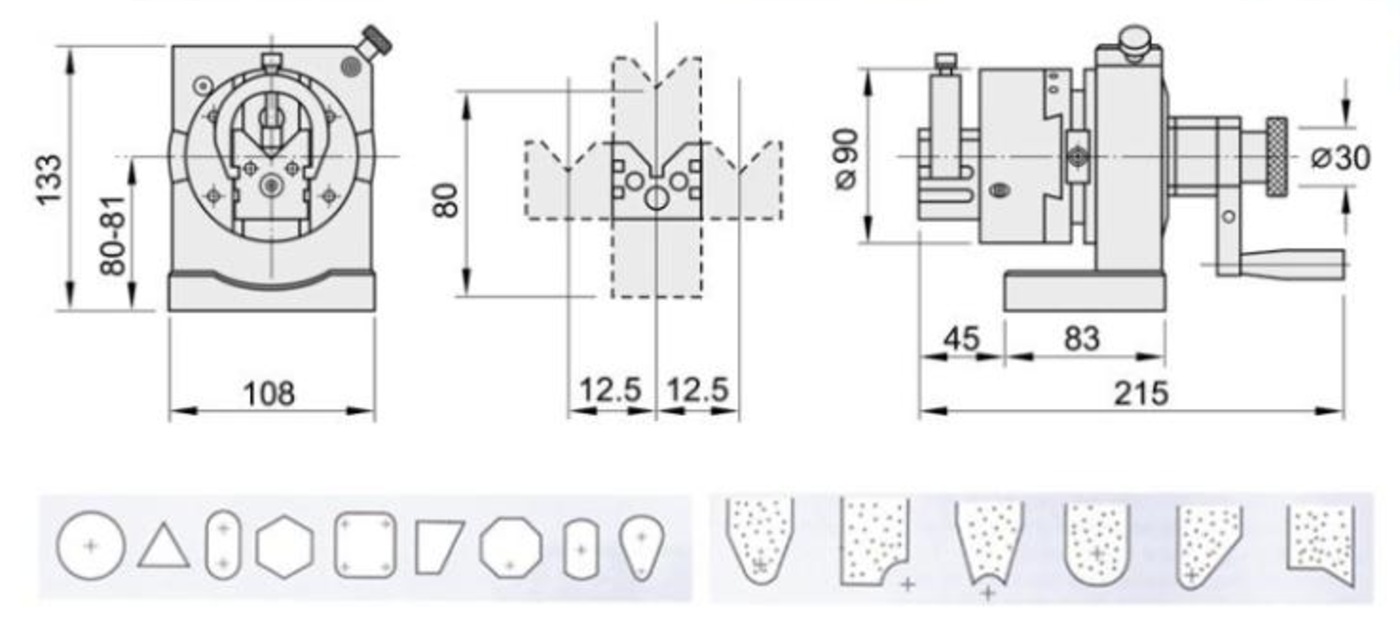

SPECIFICATION:
| Center height | 80-81 mm |
| Max. clamping diameter in V-groove | Ø4-30 mm |
| V-block travel vertically | 25 mm |
| V-block travel horizontally | 24, 15˚±5" |
| Indexing divisions and accuracy | Ø200 mm |
| Max. radius when dressing arc | |
| Convex | R48 mm |
| Concave | R100 mm |
| Weight | 10 kgs |
