COMPOUND SINE PLATE WITH FINE MAGNETIC CHUCKS
53100804, 53100805, 53100806, 53100807
Description
Specification

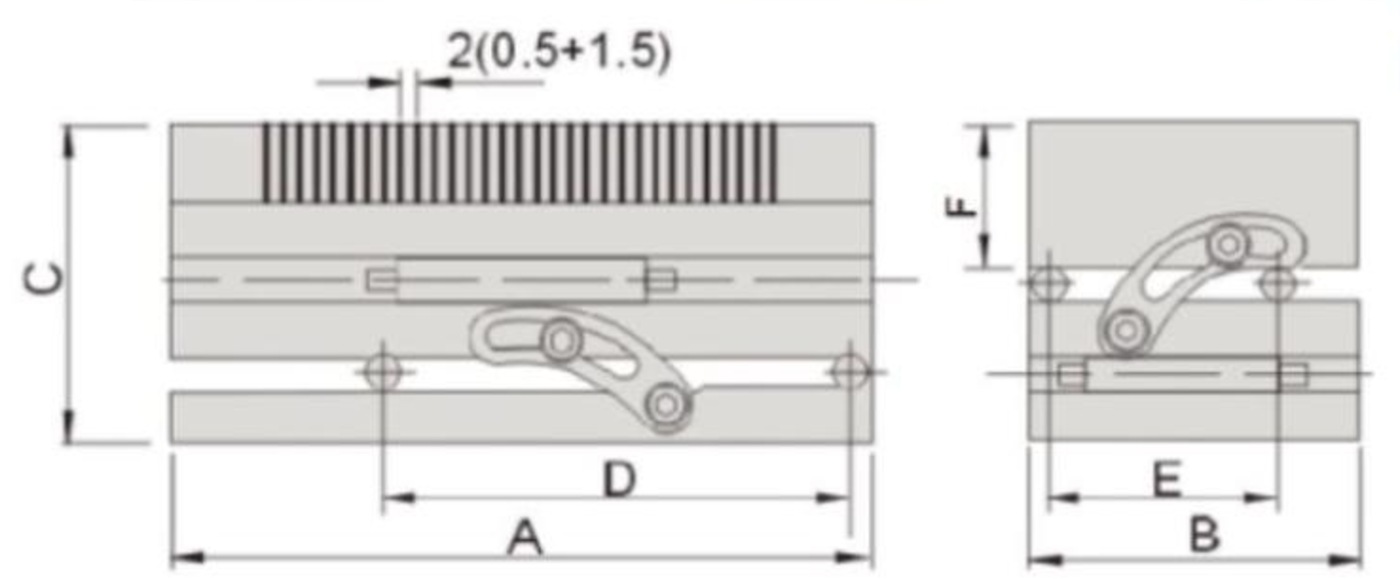

UNIT: mm/inch
| ITEM NO. | A | B | C | D | E | F | N.W. |
|---|---|---|---|---|---|---|---|
| 53100804 | 175 / 7 | 100 / 4 | 123.7 / 4.9 | 100 / 4 | 75 / 3 | 47 / 1.85 | 13.5 kgs |
| 53100805 | 150 / 6 | 150 / 6 | 123.7 / 4.9 | 100 / 5 | 100 / 5 | 47 / 1.85 | 16.8 kgs |
| 53100806 | 250 / 10 | 125 / 5 | 123.7 / 4.9 | 200 / 8 | 100 / 4 | 47 / 1.85 | 23.4 kgs |
| 53100807 | 300 / 10 | 150 / 6 | 123.7 / 4.9 | 200 / 10 | 100 / 5 | 47 / 1.85 | 33.1 kgs |
