ELECTRO-PERMANENT MAGNETIC CHUCKS - CONNECTION TYPE
53101063
Description
Specification
UNIT: mm
| TYPE | VOLTAGE (Singe Phase) |
DIMENSION | CONNECTION AVAILABLE | ||
|---|---|---|---|---|---|
| L | W | H | |||
| C4C | AC 380V ~ 440V |
370 | 220 | 125 | 3~16 Chucks (CS1x 1-4pcs, CS2 x 1~4 pcs, CS3 x 1-4 pcs, CS4 x 1~4 pcs) |
UNIT: mm
| TYPE | VOLTAGE (Singe Phase) |
DIMENSION | PITCH (G) |
POLE (P) |
NO.OF POLE |
HOLDING POWER |
CHUCK N.W. |
||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

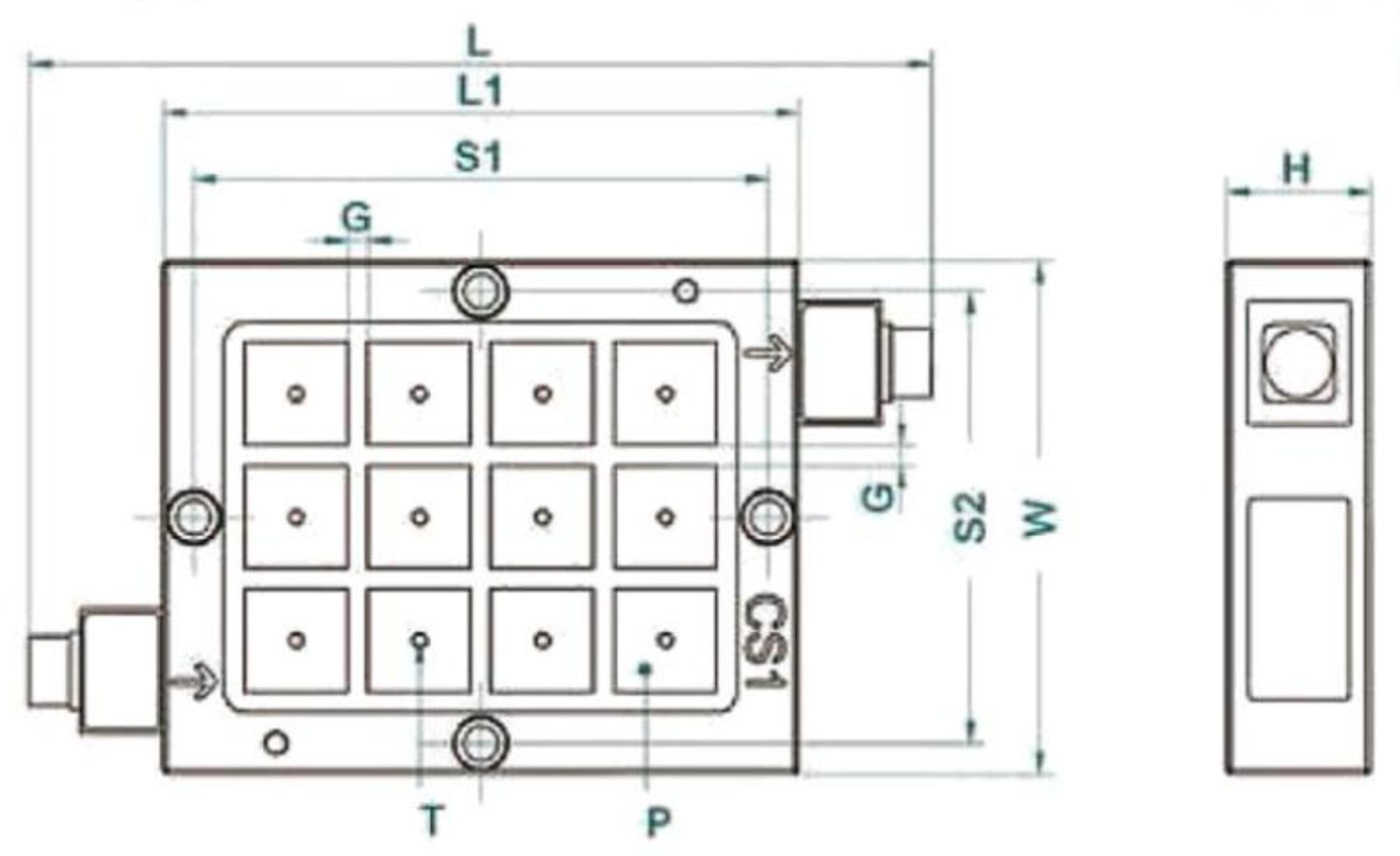

| W | L | L1 | S1 | S2 | H | T | |||||||
| CS1 | DC 380V ~ 440V |
250 | 425 | 310 | 280 | 220 | 60 | M8 | 10 | 50 x 50 | 12 | 3800 kgf ±5% |
44.0 kgs |
| CS2 | |||||||||||||
| CS3 | |||||||||||||
| CS4 | |||||||||||||
