ELECTRO-PERMANENT MAGNETIC CHUCKS

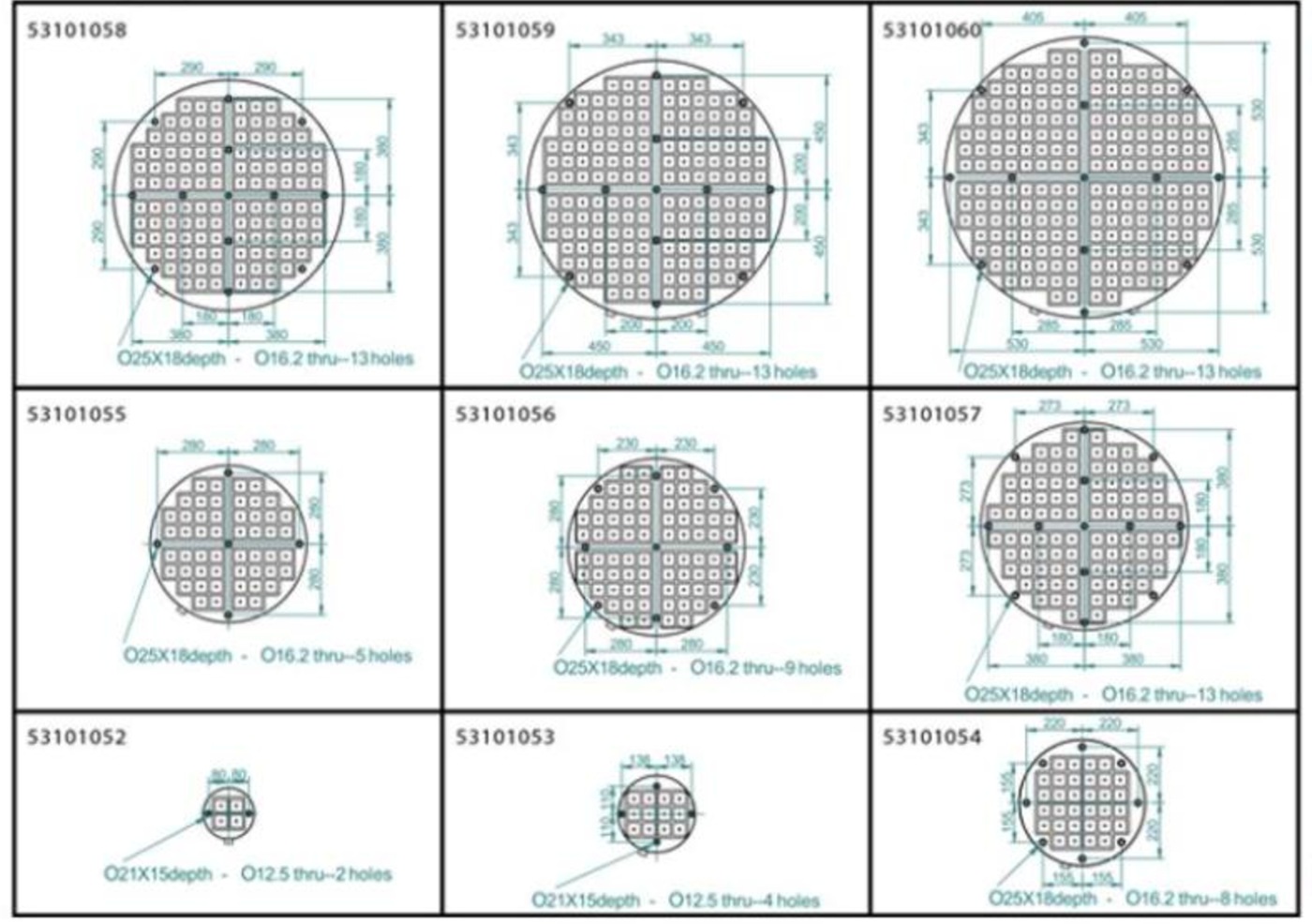

53101052, 53101053, 53101054, 53101055, 53101056, 53101057, 53101058, 53101059, 53101060
Description
Specification
UNIT: mm
| ITEM NO. | TYPE | DIMENSION | PITCH | POLE | NO.OF POLE |
CHUCK N.W. |
VOLTAGE (Single Phase) |
CURRENT AMP |
CONTROLLER (included) |
VOLTAGE (Single Phase) |
CURRENT AMP |
CONTROLLER (included) |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DIA | H | ||||||||||||
| 53101052 | S200 | ø203 | 70 | 10 | 50 x 50 | 4 | 16 kgs | AC 220V | 16A | C1 | AC 380V ~ 440V |
- | - |
| 53101053 | S300 | ø305 | 70 | 12 | 35 kgs | 18A | C1 | 6A | C1 | ||||
| 53101054 | S500 | ø500 | 70 | 32 | 97 kgs | 31A | C1 | 15A | C1 | ||||
| 53101055 | S600 | ø620 | 70 | 52 | 150 kgs | 25A | C2 | 15A | C2 | ||||
| 53101056 | S700 | ø700 | 70 | 76 | 191 kgs | 16A | C4 | 14A | C4 | ||||
| 53101057 | S800 | ø820 | 70 | 96 | 262 kgs | 25A | C4 | 15A | C4 | ||||
| 53101058 | S900 | ø910 | 80 | 120 | 362 kgs | 30A | C4 | 15A | C4 | ||||
| 53101059 | S1000 | ø1020 | 80 | 164 | 464 kgs | 25A | C8 | 15A | C8 | ||||
| 53101060 | S1100 | ø1106 | 80 | 204 | 546 kgs | 24A | C8 | 20A | C8 | ||||
