ELECTRO-PERMANENT MAGNETIC CHUCKS

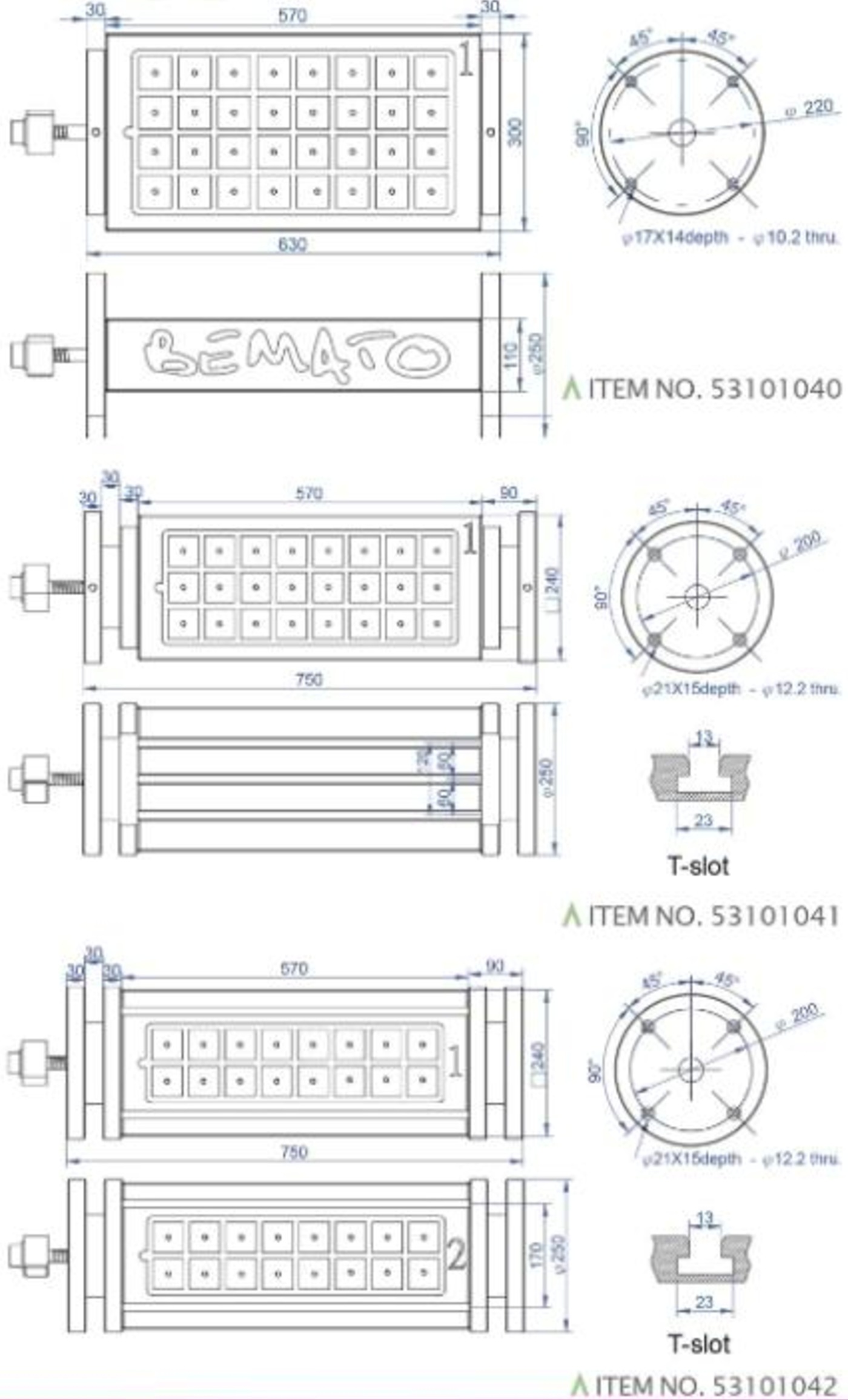

53101040, 53101041, 53101042
Description
Specification
UNIT: mm
| ITEM NO. | WORKING FACE |
PITCH | POLE | NO.OF POLE |
CHUCK N.W. |
VOLTAGE (Single Phase) |
CURRENT AMP |
CONTROLLER (included) |
VOLTAGE (Single Phase) |
CURRENT AMP |
CONTROLLER (included) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 53101040 | 300 x 570 | 10 | 50 x 50 | 32 x 2 | 141 kgs | AC 220V | 31A | C1 | AC 380V ~ 440V |
14A | C1 |
| 53101041 | 240 x 570 | 24 x 2 | 228 kgs | 22A | C1 | 10A | C1 | ||||
| 53101042 | 240 x 570 | 16 x 4 | 219 kgs | 14A | C1 | 7A | C1 |
Custom-made is available.
