PERMANENT MAGNETIC CLAMPING BLOCKS

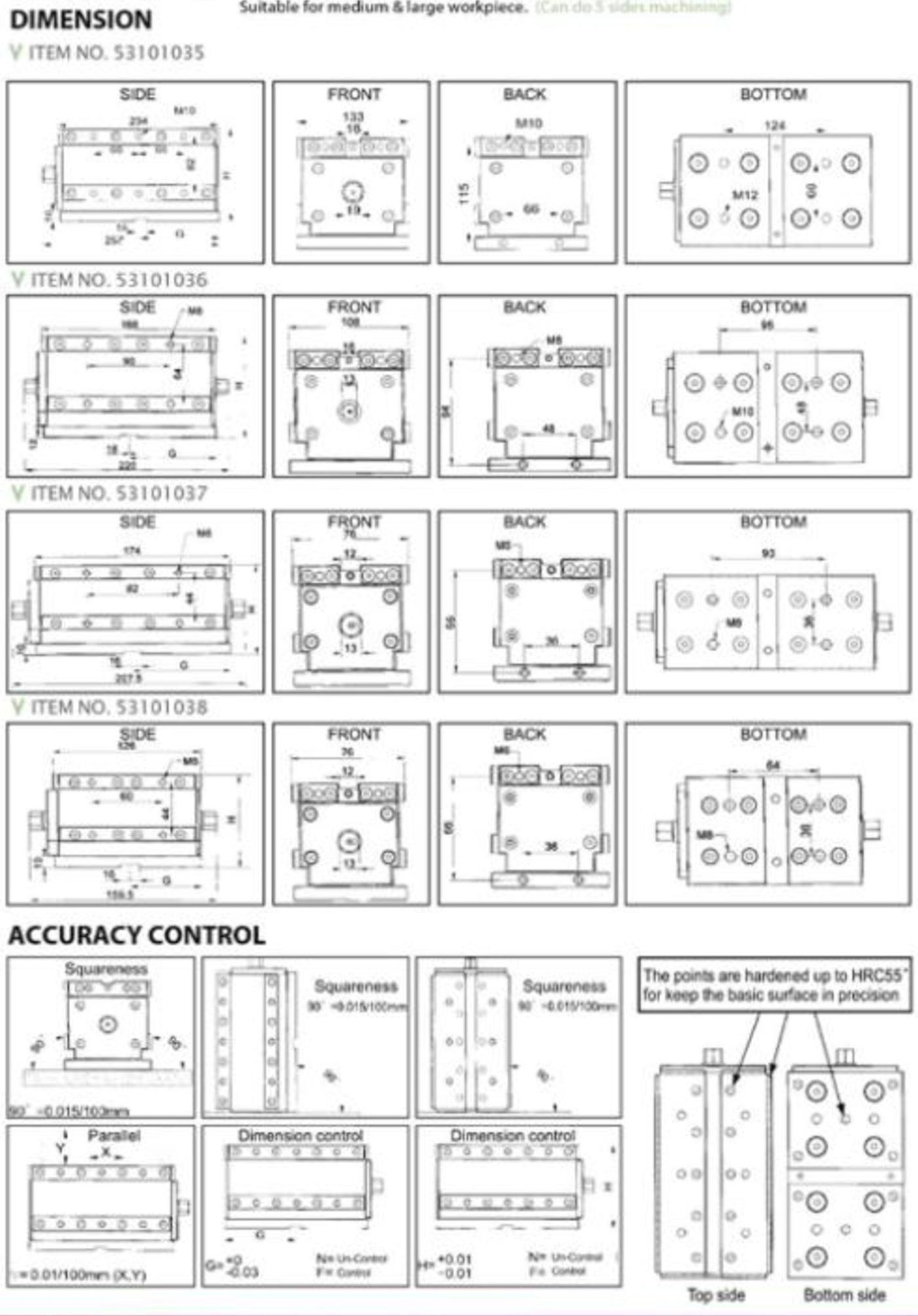

53101035, 53101036, 53101037, 53101038
Description
Specification
UNIT: mm
| ITEM NO. | HOLDING POWER |
MINIMUM THICKNESS OF WORKPIECE REQUIRED |
G | G = +0 -0.03 |
H | H = +0 -0.03 |
N.W. |
|---|---|---|---|---|---|---|---|
| 53101035 | 2100 kgf | 30 | 115 | Accuracy control required |
134 | Accuracy control required |
36 kgs |
| 53101036 | 1200 kgf | 20 | 94.5 | 108 | 18 kgs | ||
| 53101037 | 750 kgf | 15 | 88 | 78 | 9.5 kgs | ||
| 53101038 | 500 kgf | 15 | 61 | 78 | 7 kgs |
