OPTIONAL CHUCK FOR HORIZONTAL / VERTICAL ROTARY TABLE 52172049~52170119
11002182, 11002184, 11002186, 11002188
Description

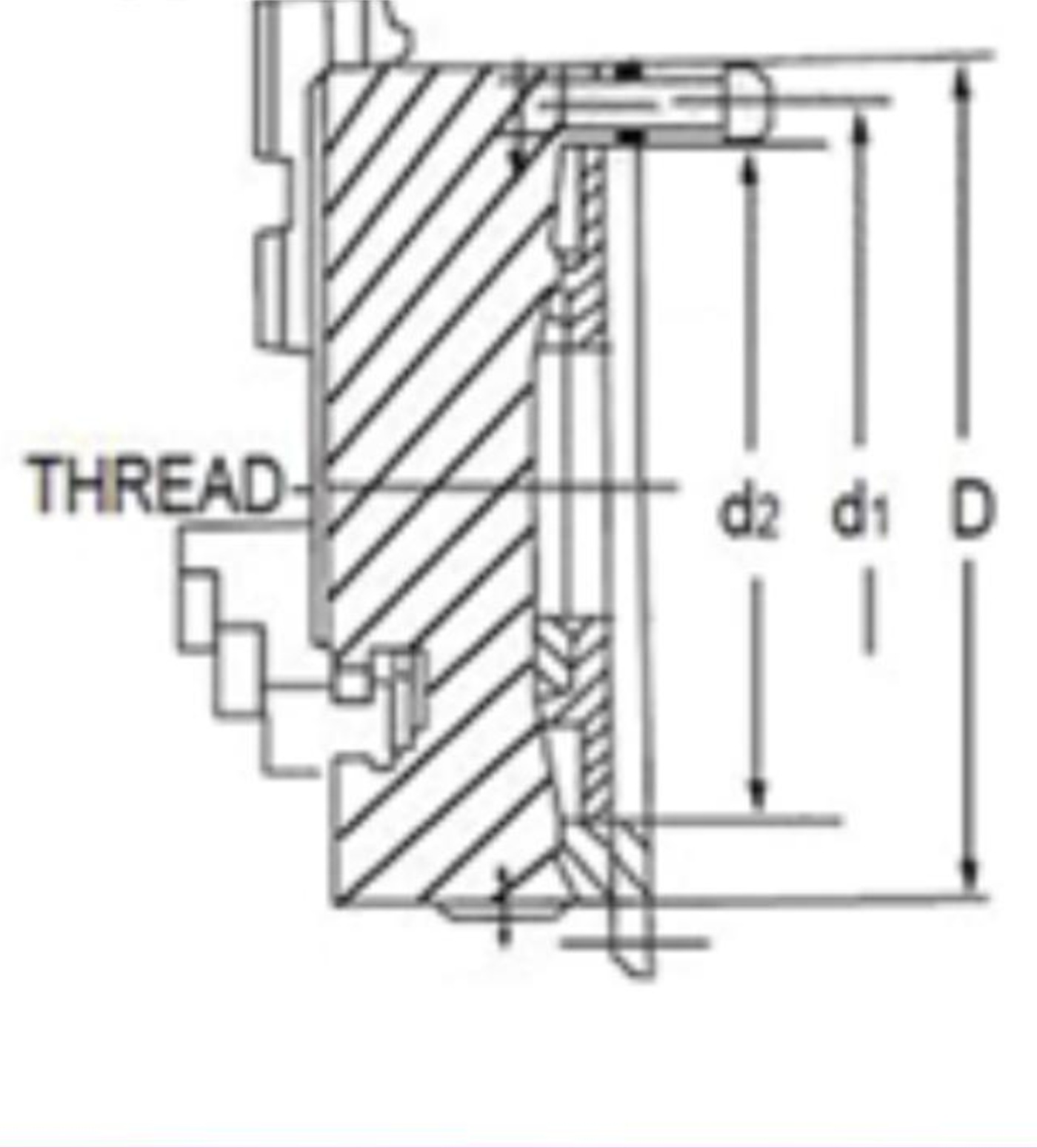

Specification
UNIT: mm
| ITEM NO. | MODEL | D SIZE | d1 | d2 | THREAD | FOR ROTARY TABLE |
|---|---|---|---|---|---|---|
| 11002182 | VSC-5A | 5" (130mm) | 115 | 100 | 3-M8 | HV-6 |
| 11002184 | VSC-6A | 6" (160mm) | 142 | 130 | 3-M8 | HV-8, HV-10 |
| 11002186 | VSC-8A | 8" (200mm) | 180 | 165 | 3-M10 | HV-10, HV-12, HV-14 |
| 11002188 | VSC-10A | 10" (250mm) | 225 | 206 | 3-M12 | HV-14, HV-16 |
