52 PCS CLAMPING KITS
52140009-1, 52140010~52140014, 52172850~52172853
Description
Specification
KIT INCLUDES:
- 24 studs 4 of each length: 3", 4", 5", 6", 7", 8"
- 6 T-slot nuts
- 6 flange nuts
- 4 coupling nuts
- 12 step blocks (6 sets, 2pc/set)
- 6 step clamps
- Fitted plastic rack / wooden tray / wooden case
METRIC SIZE

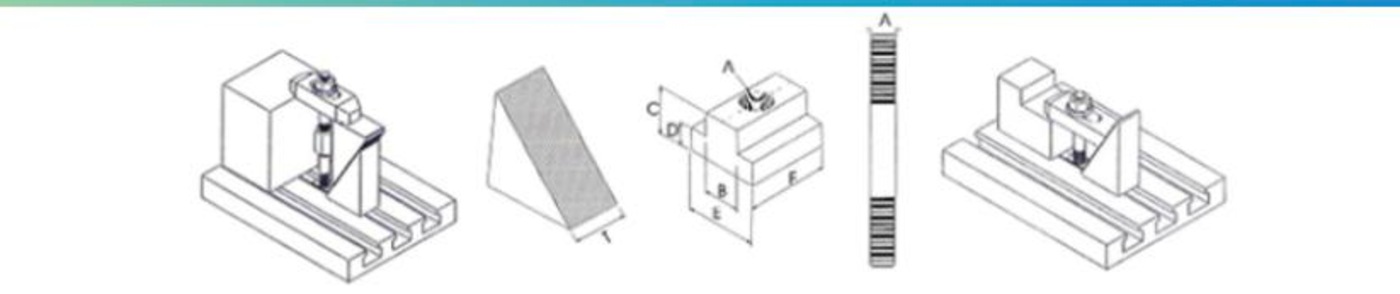

| ITEM NO. | STUD SIZE (A) | T-SLOT | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | BLOCK WIDTH (T) | PACKING |
|---|---|---|---|---|---|---|---|---|---|
| 52140009-1 | M8x1.25 | T10 | 9.7 | 12 | 6 | 16 | 20 | 25 | Plastic rack |
| 52140010 | M10x1.5 | T12 | 11.5 | 12 | 6.8 | 17.5 | 22 | 25 | Plastic rack |
| 52140011 | M12x1.75 | T14 | 13.8 | 16 | 8 | 22 | 28 | 25 | Plastic rack |
| 52140012 | M12x1.75 | T16 | 15.5 | 16 | 8 | 25 | 28 | 25 | Plastic rack |
| 52172850 | M12x1.75 | T14 | 13.8 | 16 | 8 | 22 | 28 | 32 | Plastic rack |
| 52172851 | M12x1.75 | T16 | 15.5 | 16 | 8 | 25 | 28 | 32 | Plastic rack |
| 52140013 | M14x2.0 | T16 | 15.5 | 16 | 8 | 25 | 28 | 25 | Plastic rack |
| 52172852 | M14x2.0 | T16 | 15.5 | 16 | 8 | 25 | 28 | 32 | Plastic rack |
| 52140014 | M16x2.0 | T18 | 17.5 | 19 | 11 | 28 | 31 | 25 | Plastic rack |
| 52172853 | M16x2.0 | T18 | 17.5 | 19 | 11 | 28 | 31 | 32 | Plastic rack |
| 52140014-1 | M18x2.5 | T20 | 19.5 | 24 | 12 | 32 | 38 | 38 | Wooden tray |
| 52140014-2 | M20x2.5 | T22 | 21.7 | 28 | 14 | 35 | 38 | 38 | Wooden tray |
| 52140014-3 | M24x3.0 | T28 | 27.5 | 36 | 18 | 44 | 49 | 50 | Wooden case |
