JIG BLOCKS (T-SLOTS / 4-FACE)

JIG BLOCKS (T-SLOTS / 4-FACE)

JIG BLOCKS (T-SLOTS / 4-FACE)

52130616~52130629

Description

Specification

UNIT: mm

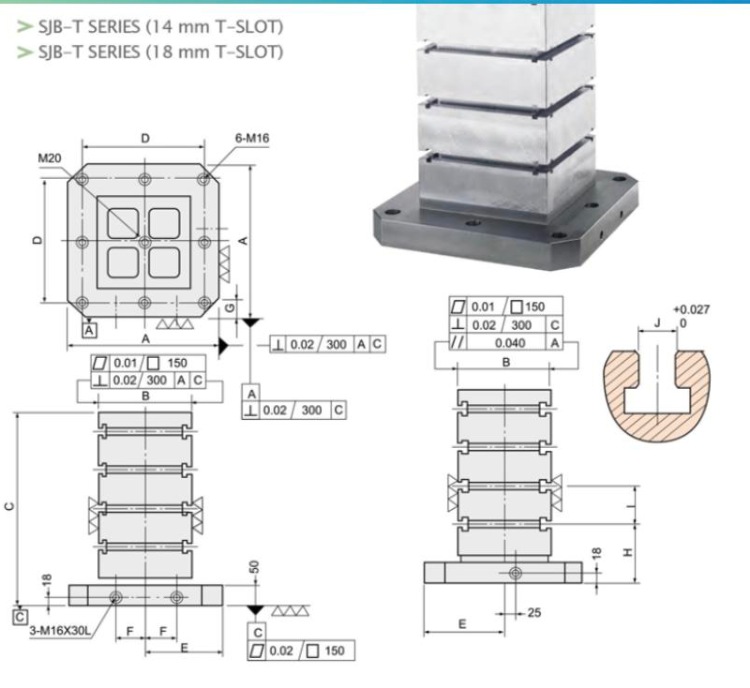

ITEM NO. MODEL A B C D E F G H I J N.W. (kgs)
52130616 SJB-400 x 250 x 500T 400 250 500 320 200 55 50 100 100 x 4 14 177
52130617 SJB-500 x 300 x 600T 500 300 600 400 250 75 60 100 100 x 5 14 290
52130618 SJB-500 x 350 x 550T 500 350 550 400 250 75 60 150 100 x 4 14 291
52130619 SJB-630 x 350 x 700T 630 350 700 500 315 100 65 150 125 x 5 14 428
52130620 SJB-630 x 400 x 700T 630 400 700 500 315 100 65 150 125 x 5 14 470
52130621 SJB-630 x 500 x 700T 630 500 700 500 315 100 65 150 125 x 5 14 560
52130622 SJB-800 x 550 x 850T 800 550 850 640 400 135 80 150 150 x 5 14 770
52130623 SJB-400 x 250 x 500L 400 250 500 320 200 55 50 100 100 x 4 18 174
52130624 SJB-500 x 300 x 600L 500 300 600 400 250 75 60 100 100 x 5 18 287
52130625 SJB-500 x 350 x 550L 500 350 550 400 250 75 60 150 100 x 4 18 286
52130626 SJB-630 x 350 x 700L 630 350 700 500 315 100 65 150 125 x 5 18 423
52130627 SJB-630 x 400 x 700L 630 400 700 500 315 100 65 150 125 x 5 18 465
52130628 SJB-630 x 500 x 700L 630 500 700 500 315 100 65 150 125 x 5 18 552
52130629 SJB-800 x 550 x 850L 800 550 850 640 400 135 80 150 150 x 5 18 764
