MC 2 IN 1 DOUBLE SELF-CENTERING VISES
52131463, 52131465, 52131467, 52131469
Description

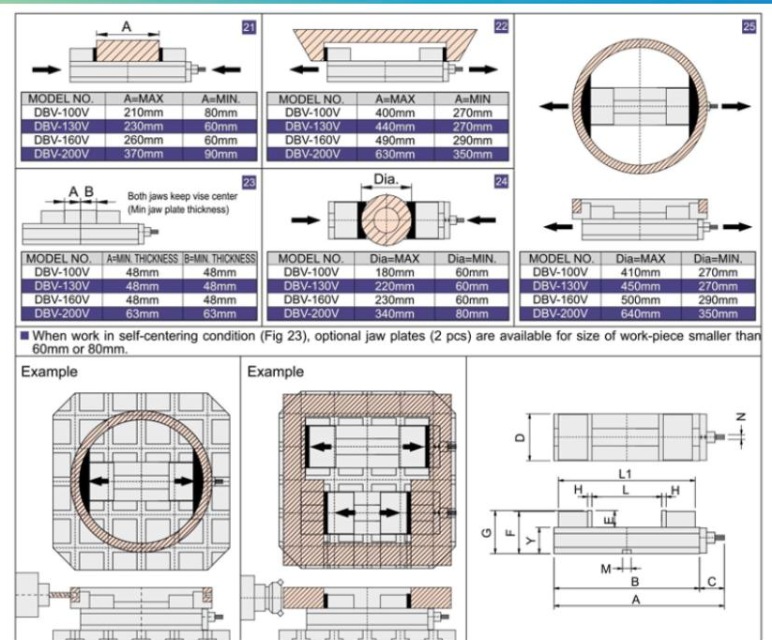

Specification
UNIT: mm
| ITEM NO. | MODEL | A | B | C | D | E | F | G | H | L | L | L1 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 52171463 | DBV-100V | 488 | 410 | 78 | 101 | 48 | 125 | 128 | 15 | 80~210 | 0~150 | 270~400 |
| 52171465 | DBV-130V | 528 | 450 | 78 | 131 | 55 | 137 | 140 | 15 | 60~230 | 0~170 | 270~440 |
| 52171467 | DBV-160V | 578 | 500 | 78 | 161 | 58 | 145 | 148 | 15 | 60~260 | 0~200 | 270~490 |
| 52171469 | DBV-200V | 720 | 642 | 78 | 201 | 63 | 155 | 158 | 18 | 90~370 | 0~290 | 350~630 |
UNIT: mm
| ITEM NO. | MODEL | M | N | Y | Y=0/-0.02 | N.W. | G.W. | MEASUREMENT |
|---|---|---|---|---|---|---|---|---|
| 52171463 | DBV-100V | 16 | 19 | 80 | Yes | 25 kgs | 27 kgs | 600 x 220 x 185 |
| 52171465 | DBV-130V | 18 | 19 | 85 | Yes | 38 kgs | 41 kgs | 665 x 250 x 205 |
| 52171467 | DBV-160V | 18 | 19 | 90 | Yes | 53 kgs | 55 kgs | 760 x 280 x 215 |
| 52171469 | DBV-200V | 18 | 19 | 95 | Yes | 87 kgs | 90 kgs | 860 x 320 x 225 |
