COMPACT MILLING MACHINE VISES - FOR VMCs W/ OPTIONAL SWIVEL BASES (STEEL)
52130194, 52130196, 52130198, 52130200, 52130202~52130205
Description
Specification

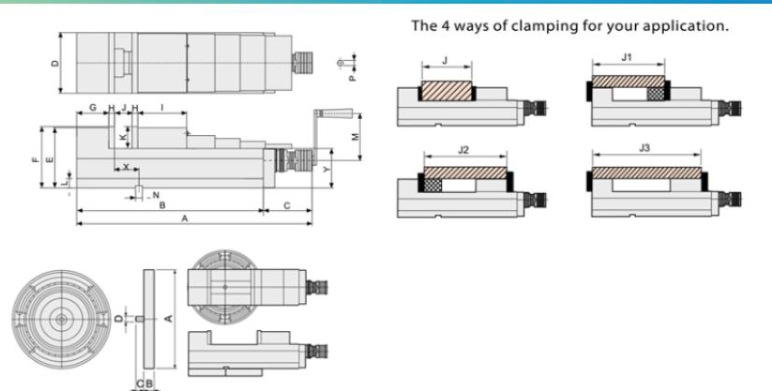

UNIT: mm
| ITEM NO. | MODEL | A | B | C | D | E | F | G | H | I | J | J1 | J2 | J3 | K | L |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 52130194 | CHV-100V | 475 | 340 | 135 | 101 | 130 | 133 | 65 | 15 | 105 | 0-125 | 125-190 | 125-230 | 125-320 | 48 | 22 |
| 52130196 | CHV-130V | 540 | 405 | 135 | 131 | 147 | 150 | 70 | 15 | 115 | 0-180 | 180-240 | 180-290 | 180-380 | 55 | 22 |
| 52130198 | CHV-160V | 630 | 495 | 135 | 161 | 160 | 163 | 85 | 15 | 130 | 0-240 | 240-320 | 240-360 | 240-470 | 58 | 22 |
| 52130200 | CHV-200V | 705 | 570 | 135 | 201 | 170 | 173 | 90 | 18 | 150 | 0-280 | 280-360 | 280-420 | 280-540 | 63 | 22 |
UNIT: mm
| ITEM NO. | MODEL | M | N | P | X | X=0/-0.02 | Y | Y=0/-0.02 | MAX. PRESSURE | LIMIT PRESSURE | N.W. | G.W | MEASUREMENT |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 52130194 | CHV-100V | 125 | 16 | 14 | 45 | Yes | 85 | Yes | 36KN(3528 kgf) | 41KN (4018 kgf) | 25 kgs | 27 kgs | 600 x 220 x 185 |
| 52130196 | CHV-130V | 125 | 18 | 14 | 65 | Yes | 95 | Yes | 46KN(4508 kgf) | 52KN (5096 kgf) | 38 kgs | 40 kgs | 665 x 250 x 205 |
| 52130198 | CHV-160V | 125 | 18 | 14 | 65 | Yes | 105 | Yes | 56KN(5488 kgf) | 61KN (5978 kgf) | 57 kgs | 60 kgs | 760 x 280 x 215 |
| 52130200 | CHV-200V | 125 | 18 | 14 | 82 | Yes | 110 | Yes | 71KN(6958 kgf) | 82KN (8036 kgf) | 78 kgs | 81 kgs | 860 x 320 x 225 |
UNIT: mm
| ITEM NO. | FOR SIZE OF VISE | A | B | C | D | N.W. |
|---|---|---|---|---|---|---|
| 52130202 | 100 | 248 | 29 | 25 | 16 | 6.6 kgs |
| 52130203 | 130 | 296 | 32 | 25 | 18 | 10.6 kgs |
| 52130204 | 160 | 312 | 34 | 25 | 18 | 15.5 kgs |
| 52130205 | 200 | 378 | 44 | 25 | 18 | 27.2 kgs |
