PULL STUDS - MITSUI TYPE
52171460~52171461
Description

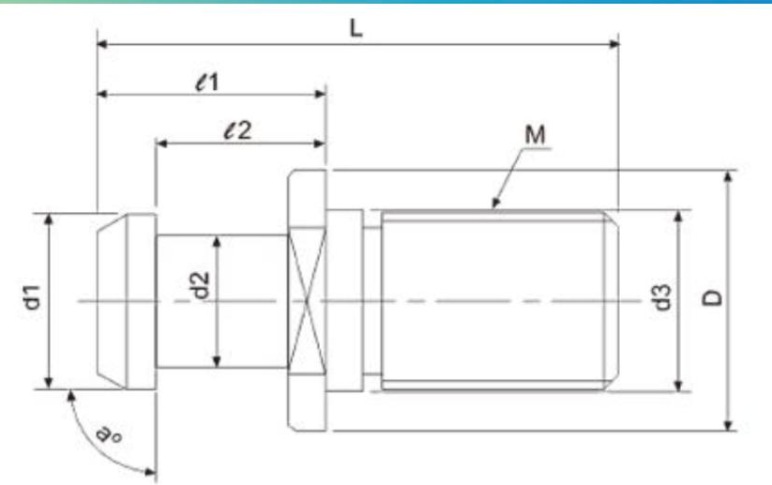

Specification
UNIT: mm
| ITEM NO. | TYPE | a° | L | e1 | e2 | D | d1 | d2 | d3 | M |
|---|---|---|---|---|---|---|---|---|---|---|
| 52171460 | MITSUI BT40 | 90 | 50 | 25 | 18 | 23 | 15 | 10 | 17 | M16 |
| 52171461 | MITSUI BT50 | 90 | 71 | 31 | 23 | 36 | 24 | 18 | 25 | M24 |
PULL STUDS - MITSUI TYPE
52171460~52171461
UNIT: mm
| ITEM NO. | TYPE | a° | L | e1 | e2 | D | d1 | d2 | d3 | M |
|---|---|---|---|---|---|---|---|---|---|---|
| 52171460 | MITSUI BT40 | 90 | 50 | 25 | 18 | 23 | 15 | 10 | 17 | M16 |
| 52171461 | MITSUI BT50 | 90 | 71 | 31 | 23 | 36 | 24 | 18 | 25 | M24 |
