PULL STUDS - ISO B TYPE (FOR ISO / DIS 7338 / 2 / B)
52171444~52171445
Description
Specification
UNIT: mm

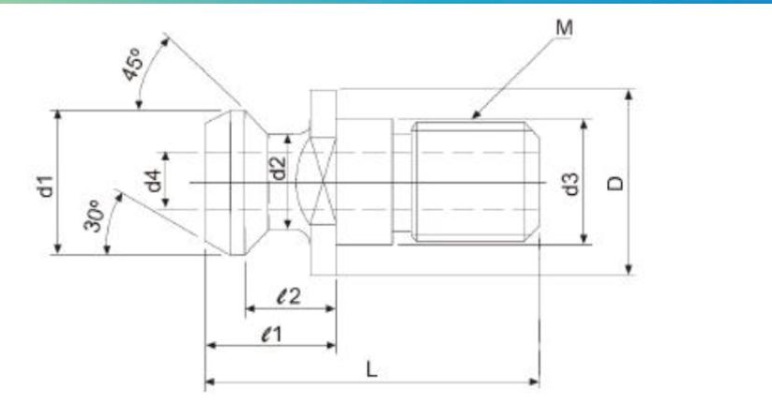

| ITEM NO. | TYPE | L | e1 | e2 | D | d1 | d2 | d3 | d4 | M |
|---|---|---|---|---|---|---|---|---|---|---|
| 52171444 | ISO40-B | 44.5 | 16.4 | 11.50 | 22.5 | 18.95 | 12.95 | 17 | 7.35 | M16 |
| 52171445 | ISO50-B | 65.5 | 25.5 | 17.95 | 37 | 29.10 | 19.60 | 25 | 11.55 | M24 |
