PULL STUDS - DIN A TYPE (FOR DIN 69872A)
52171435~52171438
Description
Specification
UNIT: mm

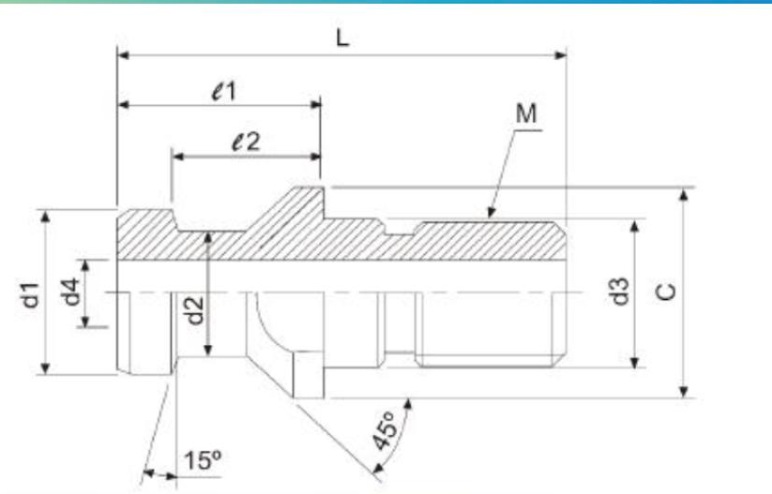

| ITEM NO. | TYPE | L | e1 | e2 | D | d1 | d2 | d3 | d4 | M |
|---|---|---|---|---|---|---|---|---|---|---|
| 52171435 | DIN30-A | 44 | 24 | 19 | 17 | 13 | 9 | 13 | - | M12 |
| 52171436 | DIN40-A | 54 | 26 | 20 | 23 | 19 | 14 | 17 | 7.0 | M16 |
| 52171437 | DIN40-A-L | 54 | 29 | 23 | 23 | 19 | 14 | 17 | 7.0 | M16 |
| 52171438 | DIN50-A | 74 | 34 | 25 | 36 | 28 | 21 | 25 | 11.5 | M24 |
