DIN 69871A - END MILL HOLDERS
52101718~52101734
Description
Specification
UNIT: mm

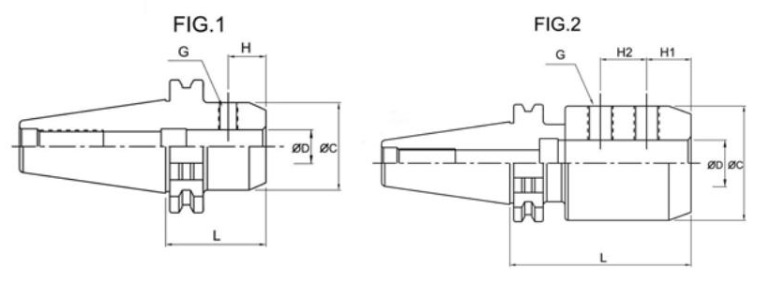

| ITEM NO. | TYPE | FIG | øC | øD | L | H1 | H2 | G | WEIGHT (kgs) |
|---|---|---|---|---|---|---|---|---|---|
| 52101718 | SK40-SLA6-50 | 1 | 25 | 6 | 50 | 18 | - | M6 | 0.9 |
| 52101719 | SK40-SLA8-50 | 28 | 8 | 50 | 18 | - | M8 | 1 | |
| 52101720 | SK40-SLA10-50 | 35 | 10 | 50 | 20 | - | M10 | 1.1 | |
| 52101721 | SK40-SLA12-50 | 42 | 12 | 50 | 22.5 | - | M12 | 1.2 | |
| 52101722 | SK40-SLA16-63 | 48 | 16 | 63 | 24 | - | M14 | 1.4 | |
| 52101723 | SK40-SLA20-63 | 48 | 20 | 63 | 25 | - | M16 | 1.4 | |
| 52101724 | SK40-SLA25-100 | 2 | 62 | 25 | 100 | 24 | 25 | M18 | 2.2 |
| 52101725 | SK40-SLA32-100 | 72 | 32 | 100 | 24 | 28 | M20 | 2.6 | |
| 52101726 | SK50-SLA6-63 | 1 | 25 | 6 | 63 | 18 | 25 | M6 | 3.1 |
| 52101727 | SK50-SLA8-63 | 28 | 8 | 63 | 18 | 25 | M8 | 3.2 | |
| 52101728 | SK50-SLA10-63 | 35 | 10 | 63 | 20 | 25 | M10 | 3.3 | |
| 52101729 | SK50-SLA12-63 | 42 | 12 | 63 | 22.5 | 25 | M12 | 3.5 | |
| 52101730 | SK50-SLA16-63 | 48 | 16 | 63 | 24 | 25 | M14 | 3.5 | |
| 52101731 | SK50-SLA20-63 | 52 | 20 | 63 | 25 | 25 | M16 | 3.6 | |
| 52101732 | SK50-SLA25-80 | 65 | 25 | 80 | 24 | 25 | M18 | 4.3 | |
| 52101733 | SK50-SLA32-100 | 2 | 72 | 32 | 100 | 24 | 28 | M20 | 5.1 |
| 52101734 | SK50-SLA40-120 | 90 | 40 | 120 | 30 | 32 | M20 | 5.8 |
