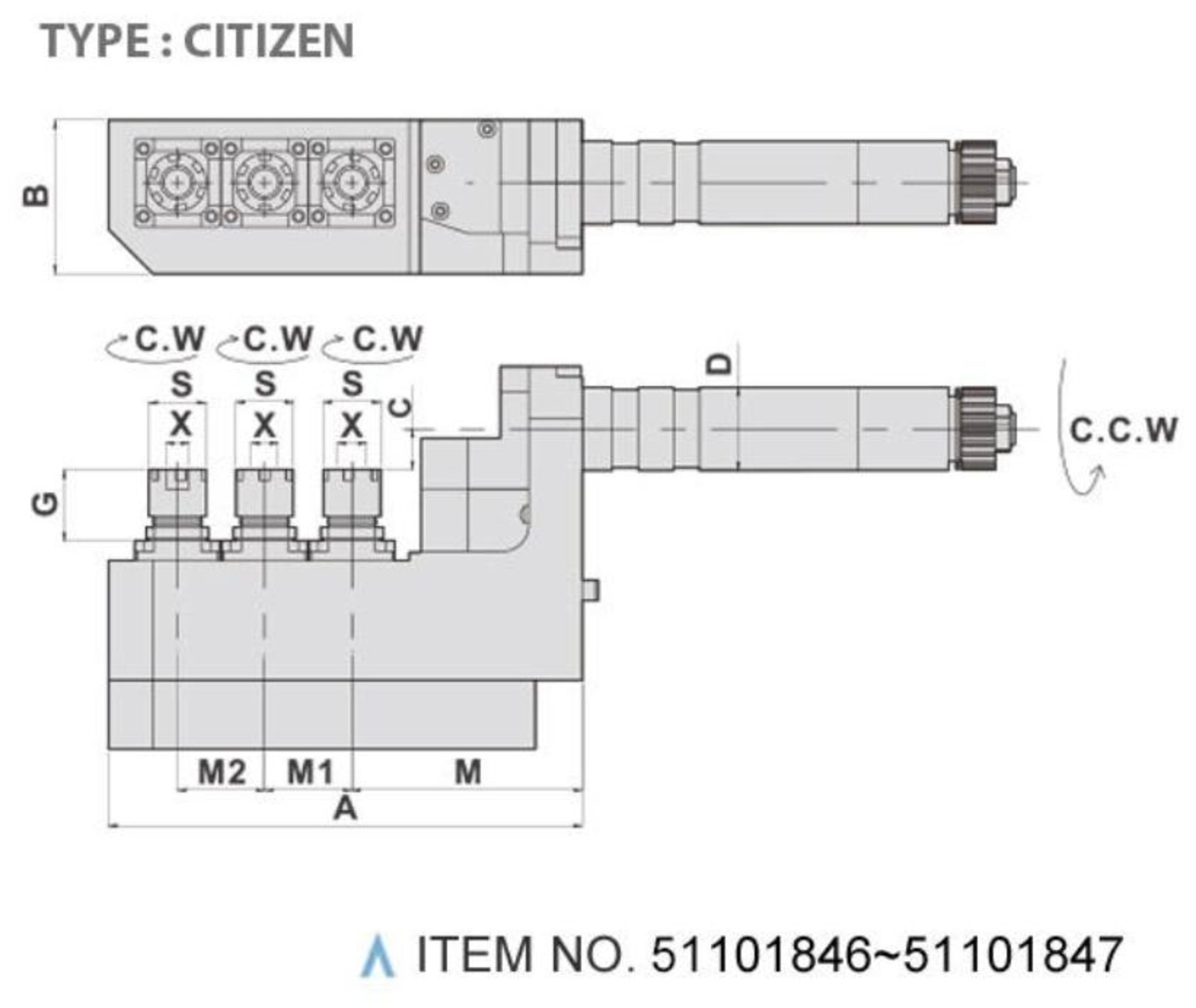

RADIAL MILLING AND DRILLING HEAD TRIPLE HEADS - OFFSET (90°) (TYPE: CITIZEN)
51101846, 51101847
Description
Specification
UNIT: mm
| ITEM NO. | STYLE | D | X (CAPACITY) |
S | MAX. RPM |
A | B | C | G | M | M1 | M2 | MODEL |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 51101846 | L520 GSE910 |
32 | 1-10 ER16M |
22 | 4000 | 180 | 51 | 19 | 24 | 88.5 | 33.5 | 33.5 | BR32-3C-910 |
| 51101847 | L520 GSE910 |
32 | 1-10 ER16M |
22 | 4000 | 182 | 59 | 19 | 24 | 88.5 | 33.5 | 33.5 | BR32-3C-1110 |
