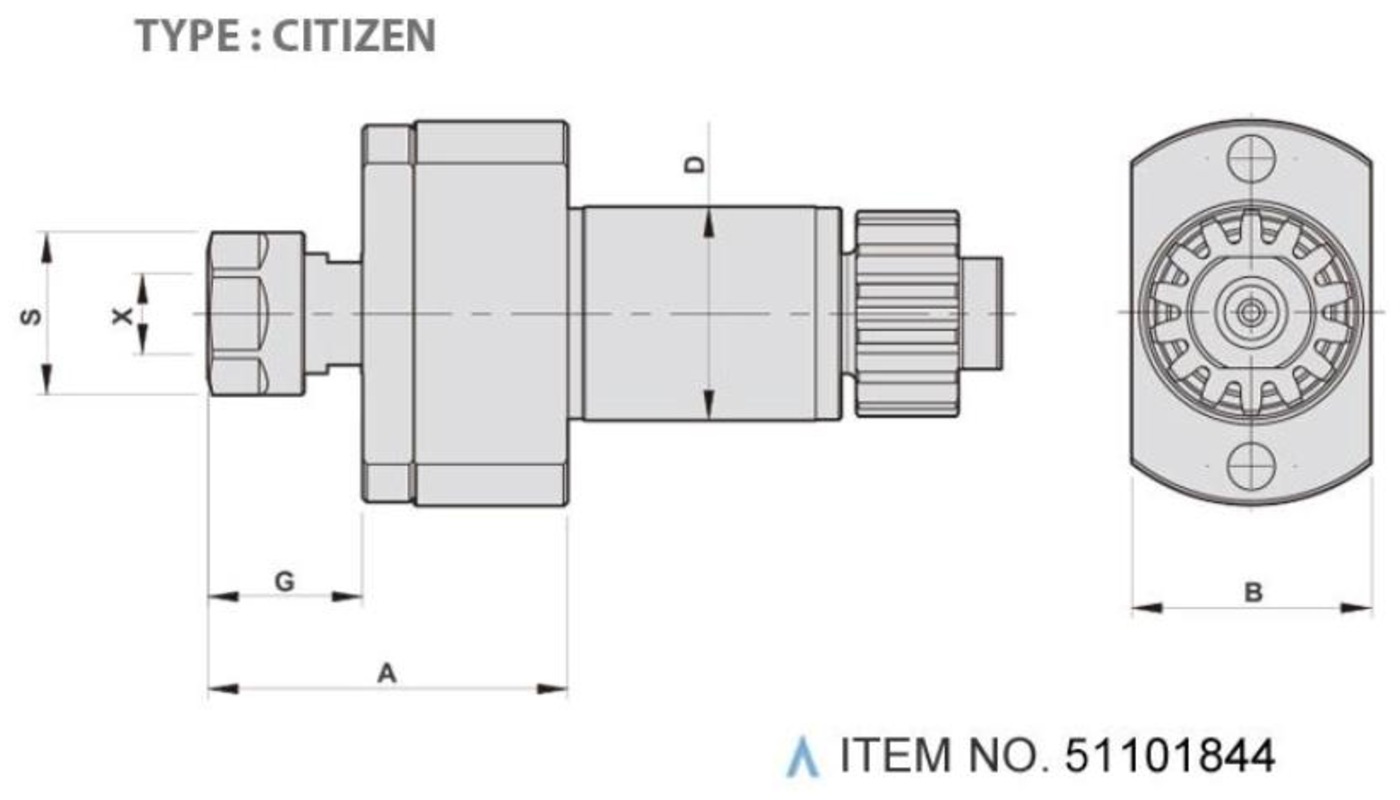

AXIAL MILLING AND DRILLING HEAD (0°) (TYPE: CITIZEN)
51101844
Description
Specification
UNIT: mm
| ITEM NO. | STYLE | D | X (CAPACITY) |
S | MAX. RPM |
A | B | G | MODEL |
|---|---|---|---|---|---|---|---|---|---|
| 51101844 | L20E | 25 | 1-7 ER11M |
19 | 6000 | 42 | 28 | 18 | GSE-3307-DA25-ER11 |
AXIAL MILLING AND DRILLING HEAD (0°) (TYPE: CITIZEN)
51101844
UNIT: mm
| ITEM NO. | STYLE | D | X (CAPACITY) |
S | MAX. RPM |
A | B | G | MODEL |
|---|---|---|---|---|---|---|---|---|---|
| 51101844 | L20E | 25 | 1-7 ER11M |
19 | 6000 | 42 | 28 | 18 | GSE-3307-DA25-ER11 |
