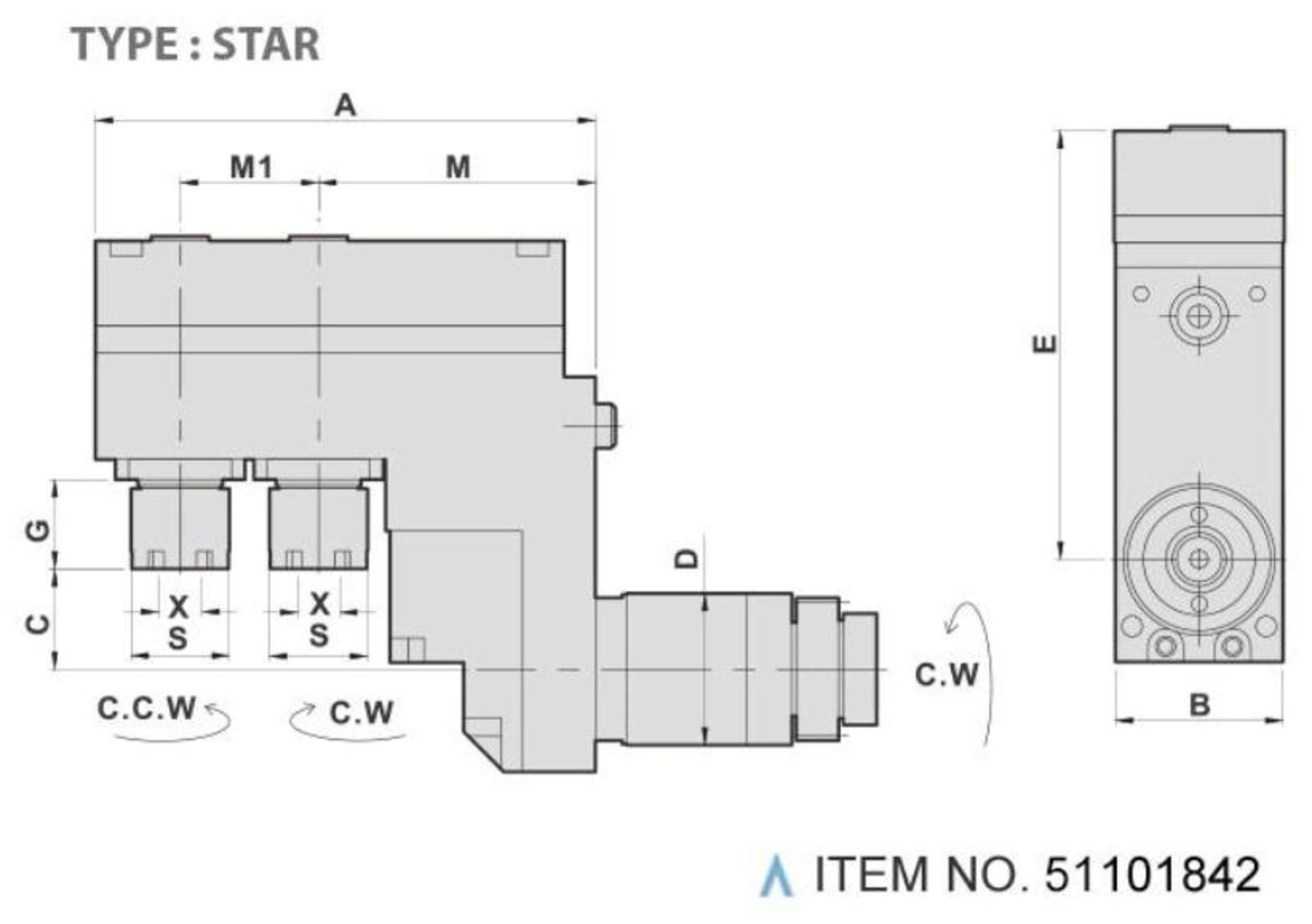

RADIAL DRILLING AND MILLING HEAD DOUBLE HEAD OFFSET (90°) (TYPE: STAR)
51101842
Description
Specification
UNIT: mm
| ITEM NO. | STYLE | D | X (CAPACITY) |
S | MAX. RPM |
A | B | C | E | G | M | M1 | MODEL |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 51101842 | SR-20R | 34 | 1-10 ER16M |
22 | 4000 | 112 | 38 | 20.5 | 96 | 22 | 62 | 31 | STAR-BR34-16M-2C |
