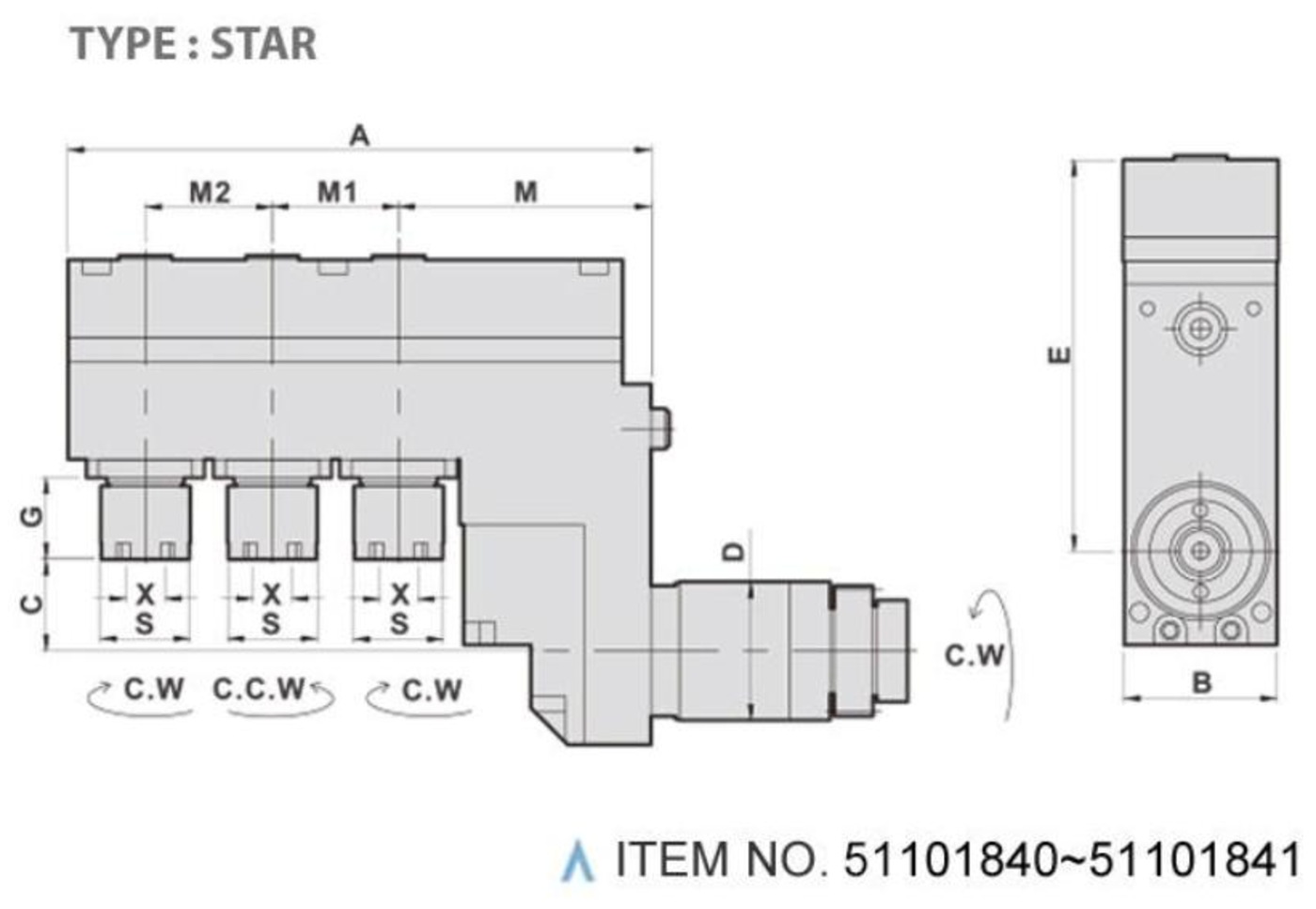

RADIAL MILLING AND DRILLING HEAD OFFSET (90°) (TYPE: STAR)
51101840, 51101841
Description
Specification
UNIT: mm
| ITEM NO. | STYLE | D | X (CAPACITY) |
S | MAX. RPM |
A | B | C | E | G | M | M1 | M2 | MODEL |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 51101840 | SR-20R | 34 | 1-10 ER16M |
22 | 4000 | 145 | 37.5 | 20.5 | 96 | 22 | 32 | 34 | 31 | STAR-BR34-16M |
| 51101841 | SR-32J | 34 | 1-10 ER16M |
22 | 4000 | 154 | 37.5 | 15 | 96 | 28 | 65 | 34 | 34 | STAR-BR34-16M-3C-32J |
