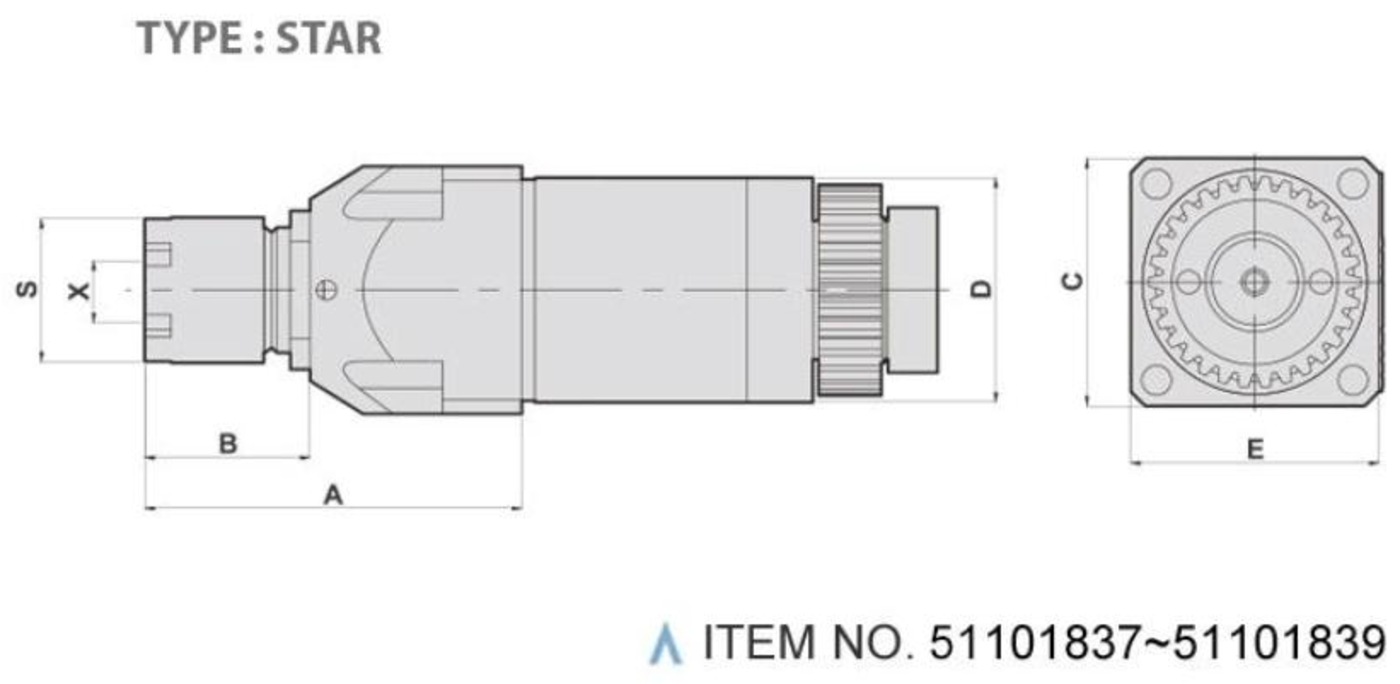

AXIAL MILLING AND DRILLING HEAD (0°) (TYPE: STAR)
51101837, 51101838, 51101839
Description
Specification
UNIT: mm
| ITEM NO. | STYLE | D | X (CAPACITY) |
S | MAX. RPM |
A | B | C | E | MODEL |
|---|---|---|---|---|---|---|---|---|---|---|
| 51101837 | SR 16R/20R SR 32R SV 12 SV 20 SV 32 SV 32 JII |
34 | 1-7 ER11M |
17 | 6000 | 41 | 18 | 37.5 | 37.5 | ST-DA34-57163-ER11M |
| 51101838 | 34 | 1-10 ER16M |
22 | 6000 | 57 | 25 | 37.5 | 37.5 | ST-DA34-57155-ER16M | |
| 51101839 | 34 | 1-10 ER16M |
22 | 6000 | 36.5 | 24.5 | 37.5 | 37.5 | ST-DA34-57150-ER16M |
