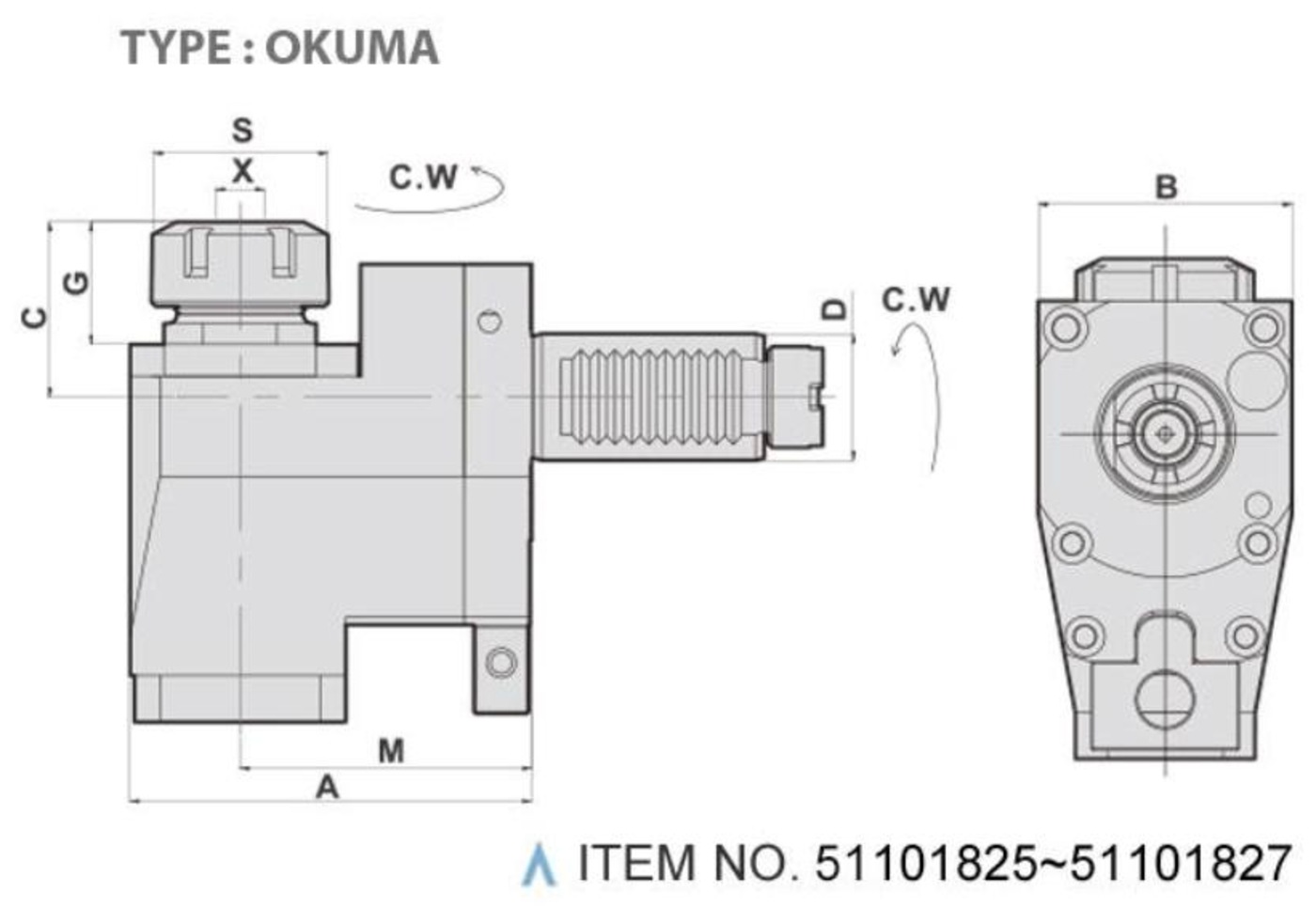

RADIAL MILLING AND DRILLING HEAD OFFSET (90°) (TYPE: OKUMA)
51101825, 51101826, 51101827
Description
Specification
UNIT: mm
| ITEM NO. | STYLE | D | X (CAPACITY) |
S | MAX. RPM |
A | B | C | G | M | MODEL |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 51101825 | L200M | 30 | 1~13 ER20 |
35 | 5000 | 95 | 64 | 43 | 30 | 69 | OK-BL30-20-69-N |
| 51101826 | L200M | 30 | 1~16 ER25 |
42 | 5000 | 95 | 64 | 42.5 | 30 | 69 | OK-BL30-25-69-N |
| 51101827 | L300M | 40 | 2~20 ER32 |
50 | 5000 | 124 | 80 | 42.5 | 29 | 90 | OK-BL40-32-90 |
