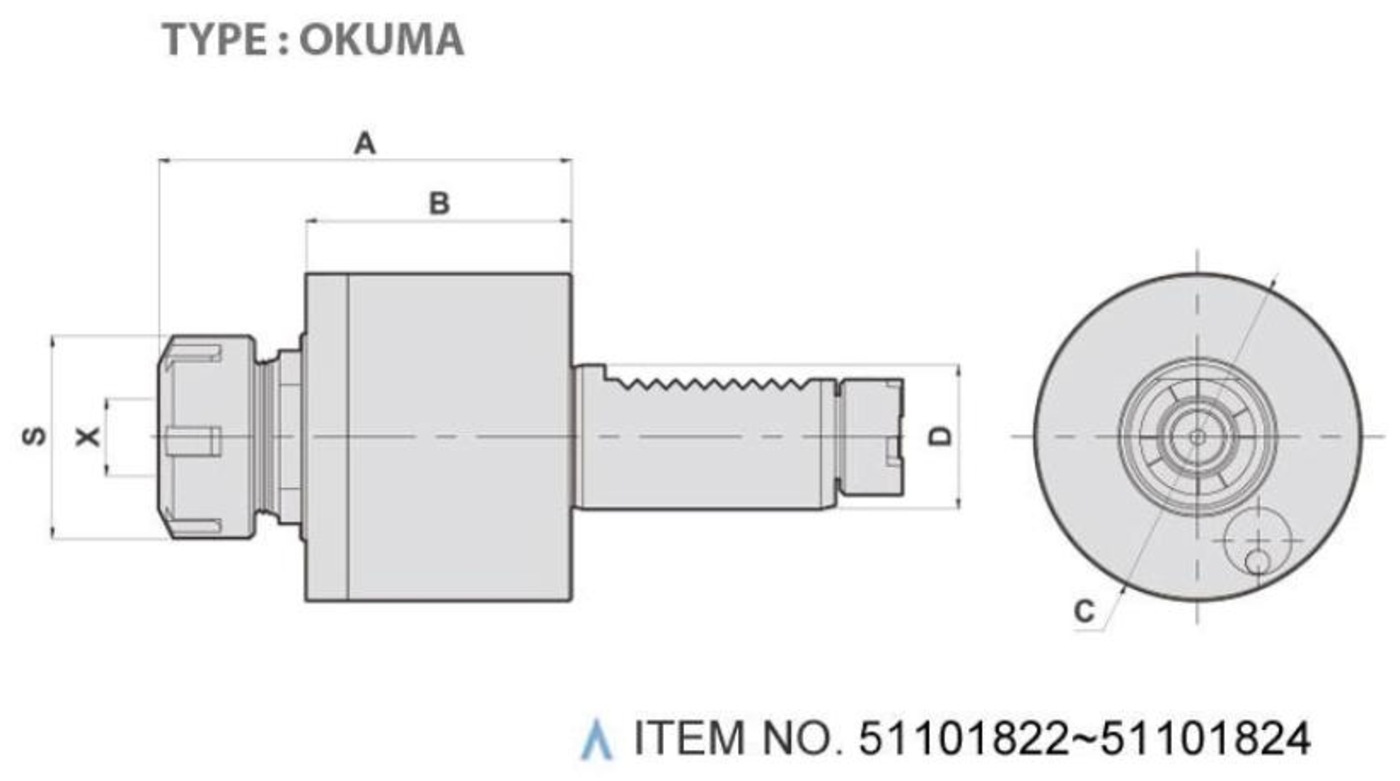

AXIAL MILLING AND DRILLING HEAD (0°) (TYPE: OKUMA)
51101822, 51101823, 51101824
Description
Specification
UNIT: mm
| ITEM NO. | STYLE | D | X (CAPACITY) |
S | MAX. RPM |
A | B | C | MODEL |
|---|---|---|---|---|---|---|---|---|---|
| 51101822 | L200M | 30 | 1-13 ER20 |
35 | 6000 | 84.5 | 57 | 68 | OK-DA30-ER20 |
| 51101823 | L200M | 30 | 1-16 ER25 |
42 | 6000 | 86 | 55 | 68 | OK-DA30-ER25 |
| 51101824 | L300M | 40 | 2-20 ER32 |
50 | 6000 | 106 | 74 | 86 | OK-DA40-ER32 |
