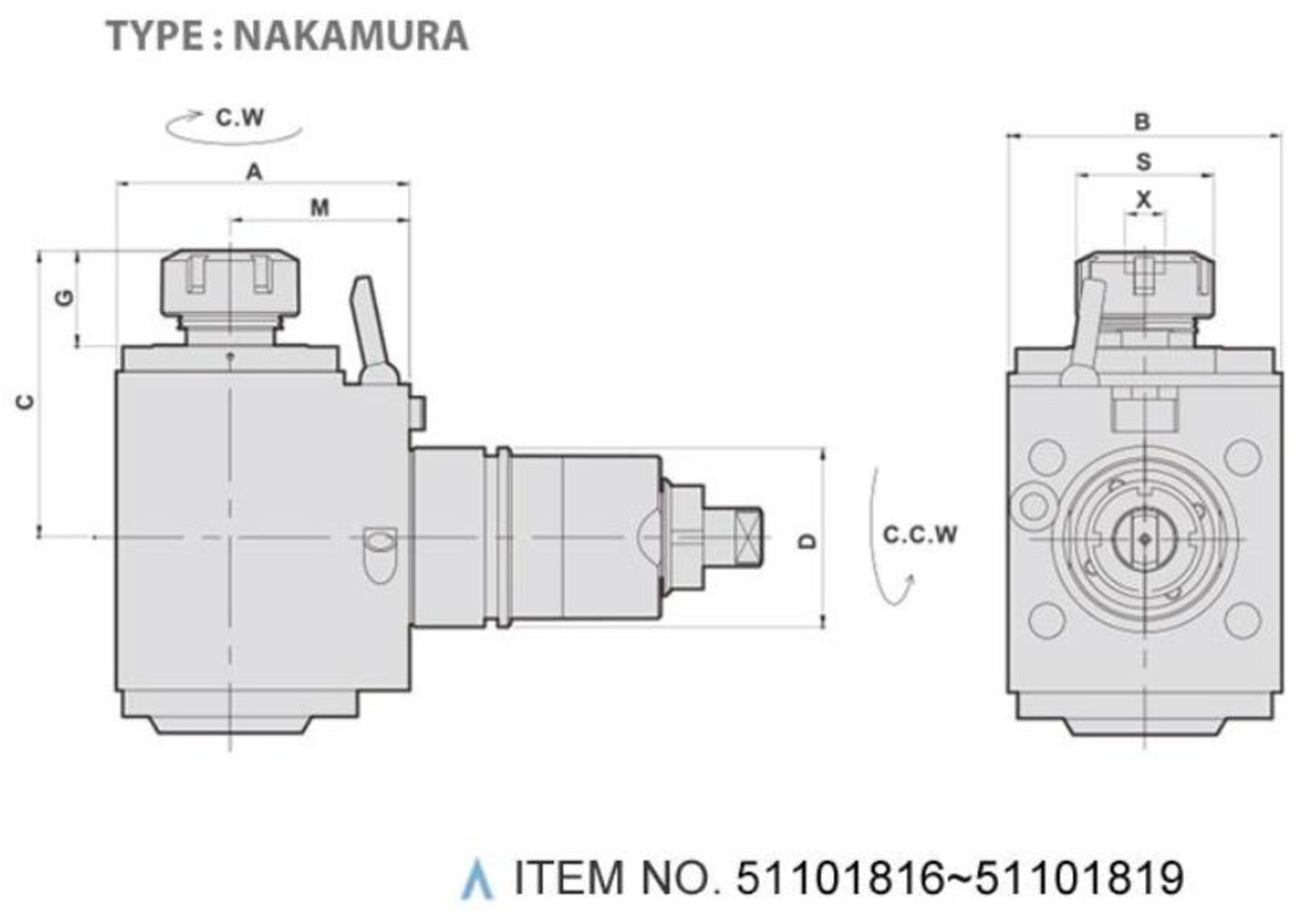

RADIAL MILLING AND DRILLING HEAD (90°) (TYPE: NAKAMURA)
51101816, 51101817, 51101818, 51101819
Description
Specification
UNIT: mm
| ITEM NO. | STYLE | D | X (CAPACITY) |
S | MAX. RPM |
i | A | B | C | G | M | MODEL |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 51101816 | WT-100 | 44 | 1-13 ER20 | 35 | 5000 | 1:1 | 86 | 75 | 78.5 | 25 | 60 | DF44NA-20-60 |
| 51101817 | WT-150 | 55 | 1-16 ER25 | 42 | 5000 | 1:1 | 90 | 84 | 88 | 30 | 55 | DF55NA-20-55 |
| 51101818 | WT-150 | 55 | 1-16 ER25 | 42 | 8000 | 1:2 | 90 | 84 | 88 | 30 | 55 | DF55NA-20-55/I |
| 51101819 | WT-300 | 65 | 2-20 ER32 | 50 | 5000 | 1:1 | 108 | 96 | 96 | 33 | 65 | DF65NA-32-65 |
