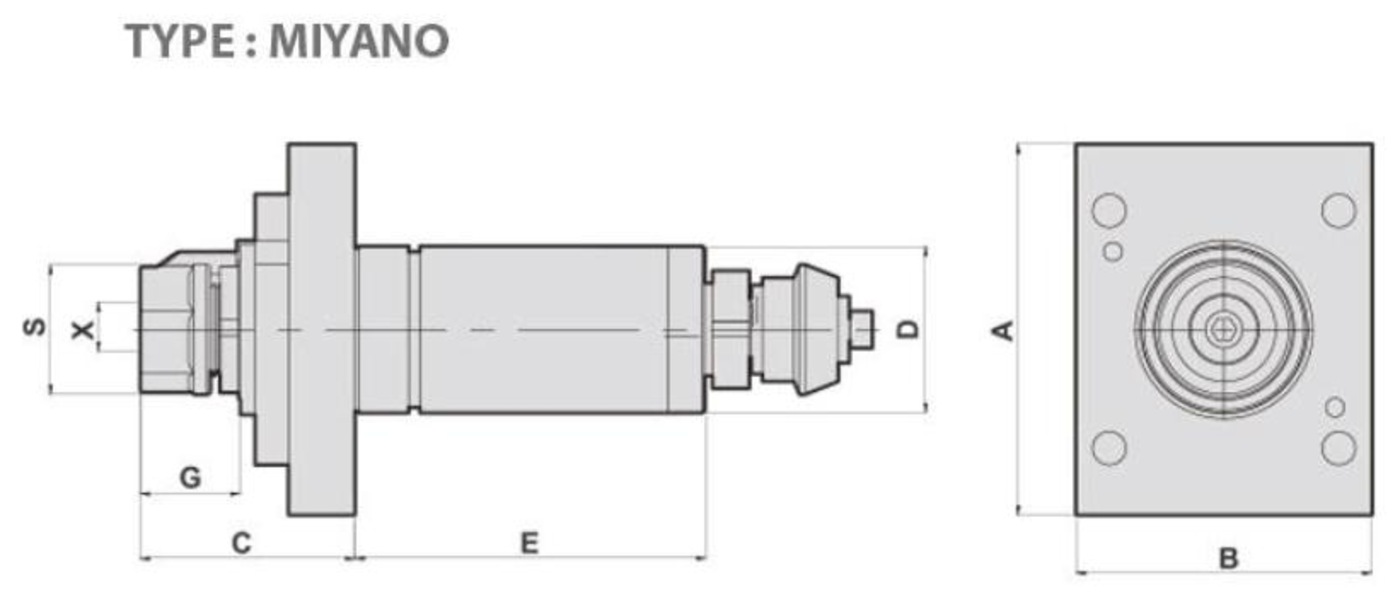

AXIAL MILLING AND DRILLING HEAD (0°) (TYPE: MIYANO)
51101791, 51101792, 51101793, 51101794, 51101795
Description
Specification
UNIT: mm
| ITEM NO. | STYLE | D | X (CAPACITY) |
S | MAX. RPM |
A | B | C | E | G | MODEL |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 51101791 | BNE-34S3 BNE-51S |
45 | 1-13 ER20 | 35 | 6000 | 70 | 74 | 60 | 57 | 28 | BNE-DA38-ER20 |
| 51101792 | BNE | 45 | 1-13 ER20 | 35 | 6000 | 92 | 72 | 52 | 81 | 25 | BNE-DA45-ER20 |
| 51101793 | BNE | 45 | 1-16 ER25 | 42 | 6000 | 92 | 72 | 53 | 81 | 31 | BNE-DA45-ER25 |
| 51101794 | BND-51 | 45 | 1-13 ER20 | 35 | 6000 | 86 | 80 | 55 | 44.5 | 28 | BND-DA45-ER20-S |
| 51101795 | BNJ-34S -42S |
45 | 1-13 ER20 | 35 | 6000 | 92 | 72 | 50 | 116 | 28 | BNJ-DA45-ER20 |
