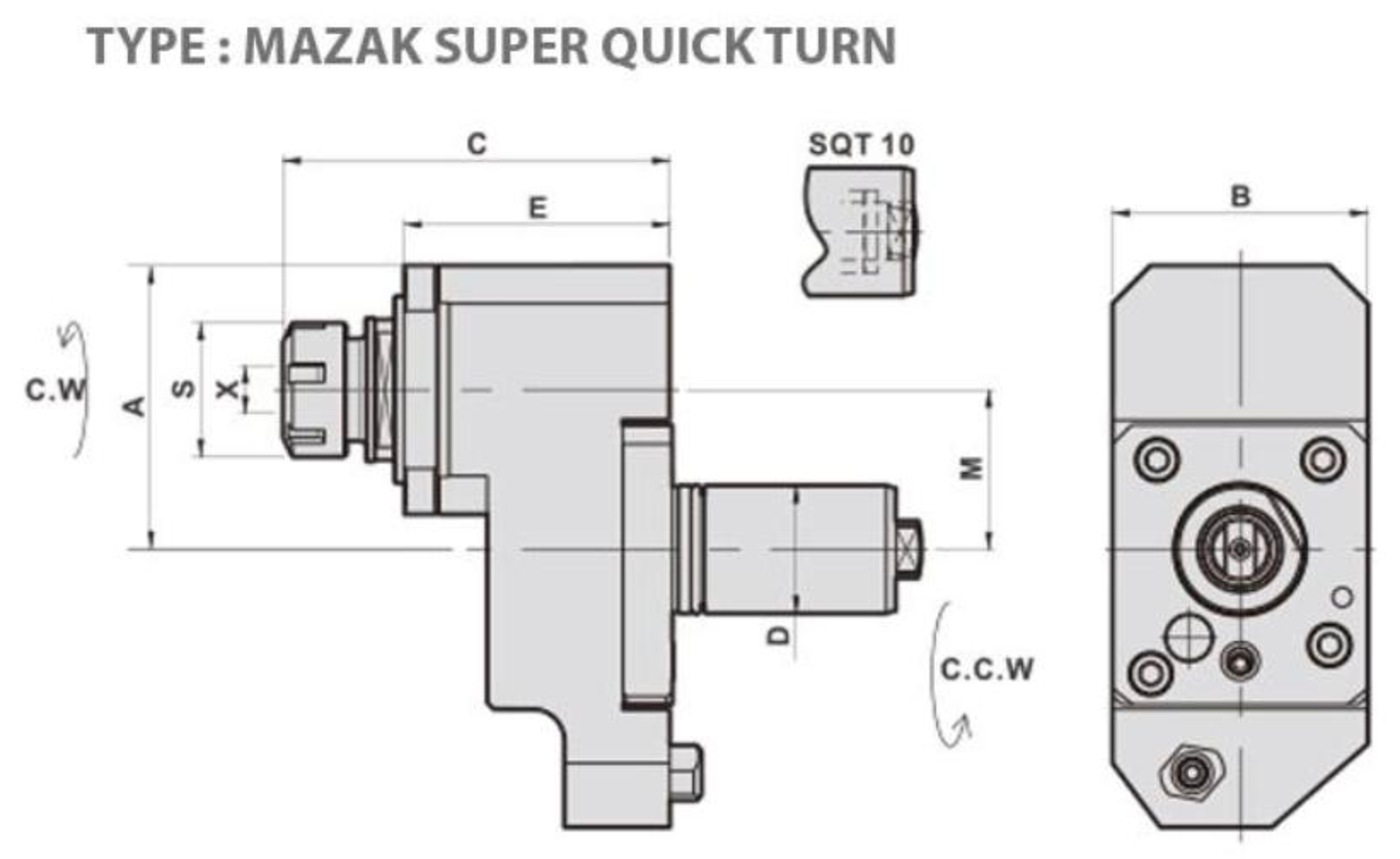

V TYPE TAPPING HEAD OFFSET (0°) (TYPE: MAZAK SUPER QUICK TURN)
51101770, 51101771, 51101772
Description
Specification
UNIT: mm
| ITEM NO. | MACHINE TYPE | STYLE | D | X (CAPACITY) |
S | MAX. RPM |
A | B | C | G | M | MODEL |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 51101770 | SQT10M-12D 15M-16D SQT200M-16D 250M-16D |
QTN100M/150M SQT10M |
40 | 1-10 ER16 | 30 | 4000 | 88 | 75 | 118 | 79 | 50 | 5352800 |
| 51101771 | 1-13 ER20 | 35 | 4000 | 88 | 75 | 118 | 79 | 50 | 5352800 -TER20 |
|||
| 51101772 | SQT15M-12D 18M-12D SQT200M-12D 250M-12D |
QTN200M/250M SQT15M/18M |
40 | 1-13 ER20 | 35 | 4000 | 89 | 80 | 120 | 82 | 50 | 5362400 |
