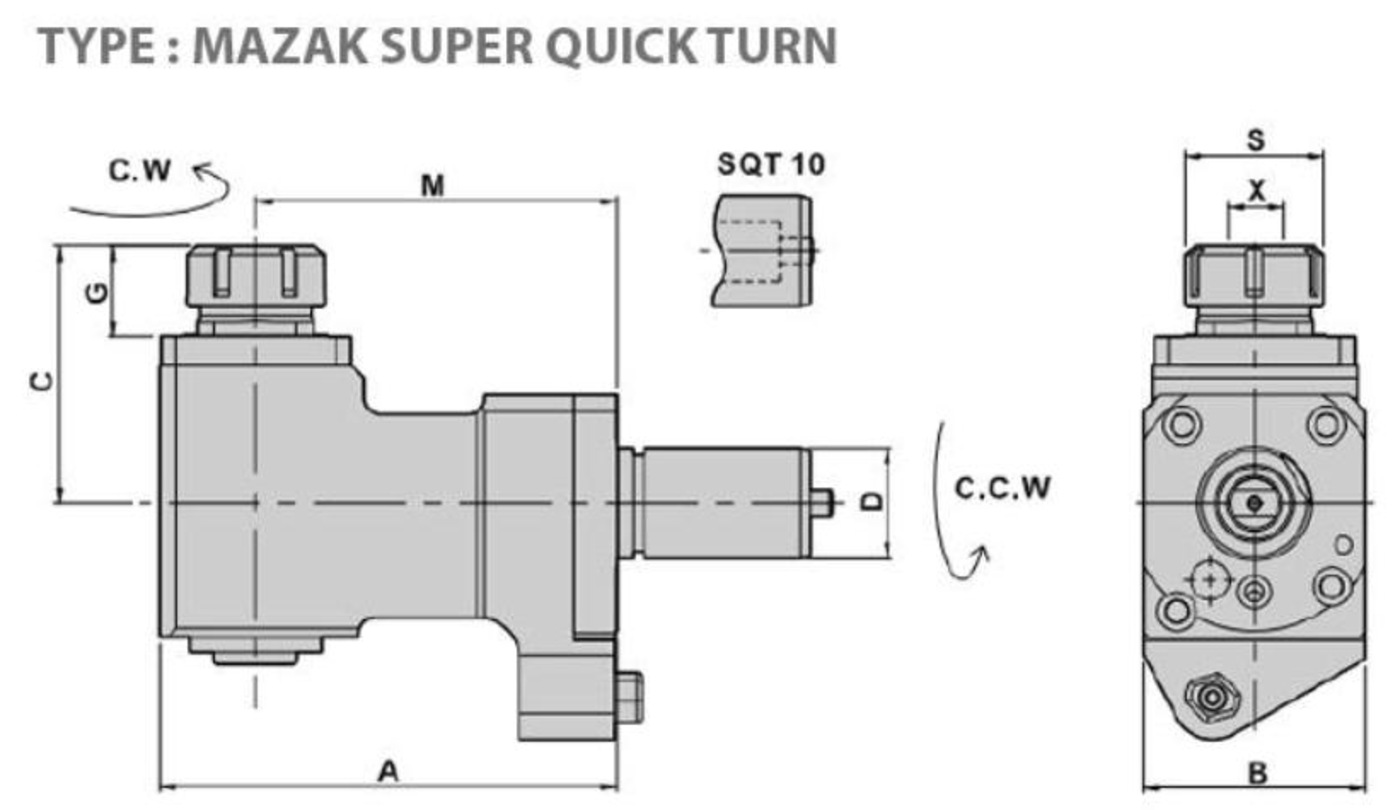

H TYPE TAPPING HEAD (90°) (TYPE: MAZAK SUPER QUICK TURN)
51101761, 51101762
Description
Specification
UNIT: mm
| ITEM NO. | MACHINE TYPE | STYLE | D | X (CAPACITY) |
S | MAX. RPM |
A | B | C | G | M | MODEL |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 51101761 | SQT10M-12D 15M-16D SQT200M-16D 250M-16D |
QTN100M/150M SQT10M |
40 | 1-10 ER16 | 30 | 3000 | 137 | 75 | 106 | 46 | 100 | 5352300 |
| 51101762 | SQT15M-12D 18M-12D SQT200M-12D 250M-12D |
QTN200M/250M SQT15M/18M |
40 | 1-13 ER20 | 35 | 3000 | 167 | 80 | 108 | 48 | 130 | 5362300 |
