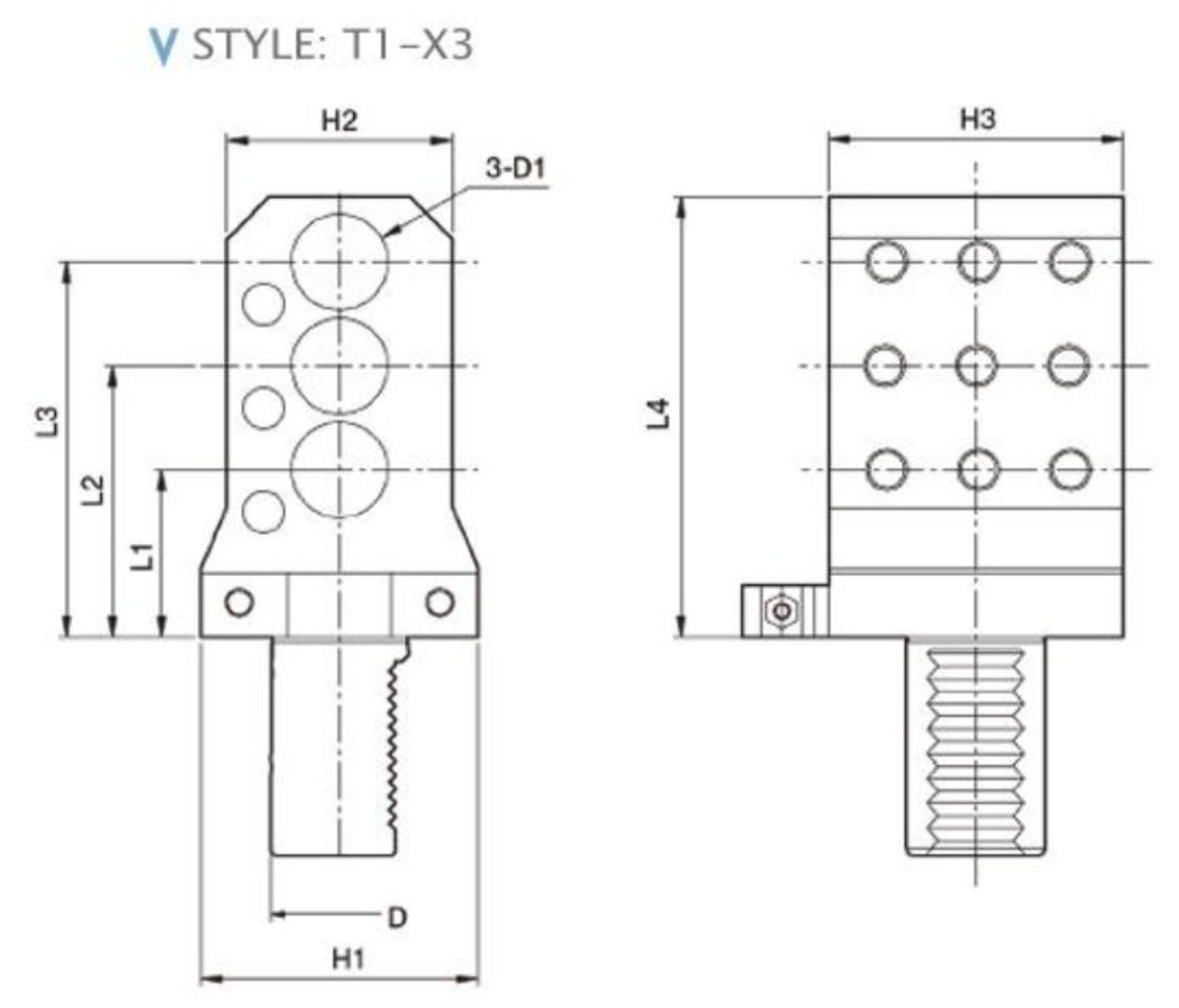

DIN 69880 AXIAL STATIC HOLDERS (STYLE: T1-X3)
51101498, 51101499
Description
Specification
UNIT: mm
| ITEM NO. | MODEL | D | D1 | H1 | H2 | H3 | L1 | L2 | L3 | L4 |
|---|---|---|---|---|---|---|---|---|---|---|
| 51101498 | T1-30-3 x 25 (1") | 30 | 25 (1") | 65 | 65 | 62 | 42 | 85 | 128 | 148 |
| 51101499 | T1-40-3 x 32(1-1/4") | 40 | 32 (1-1/4") | 80 | 65 | 85 | 50 | 85 | 120 | 148 |
