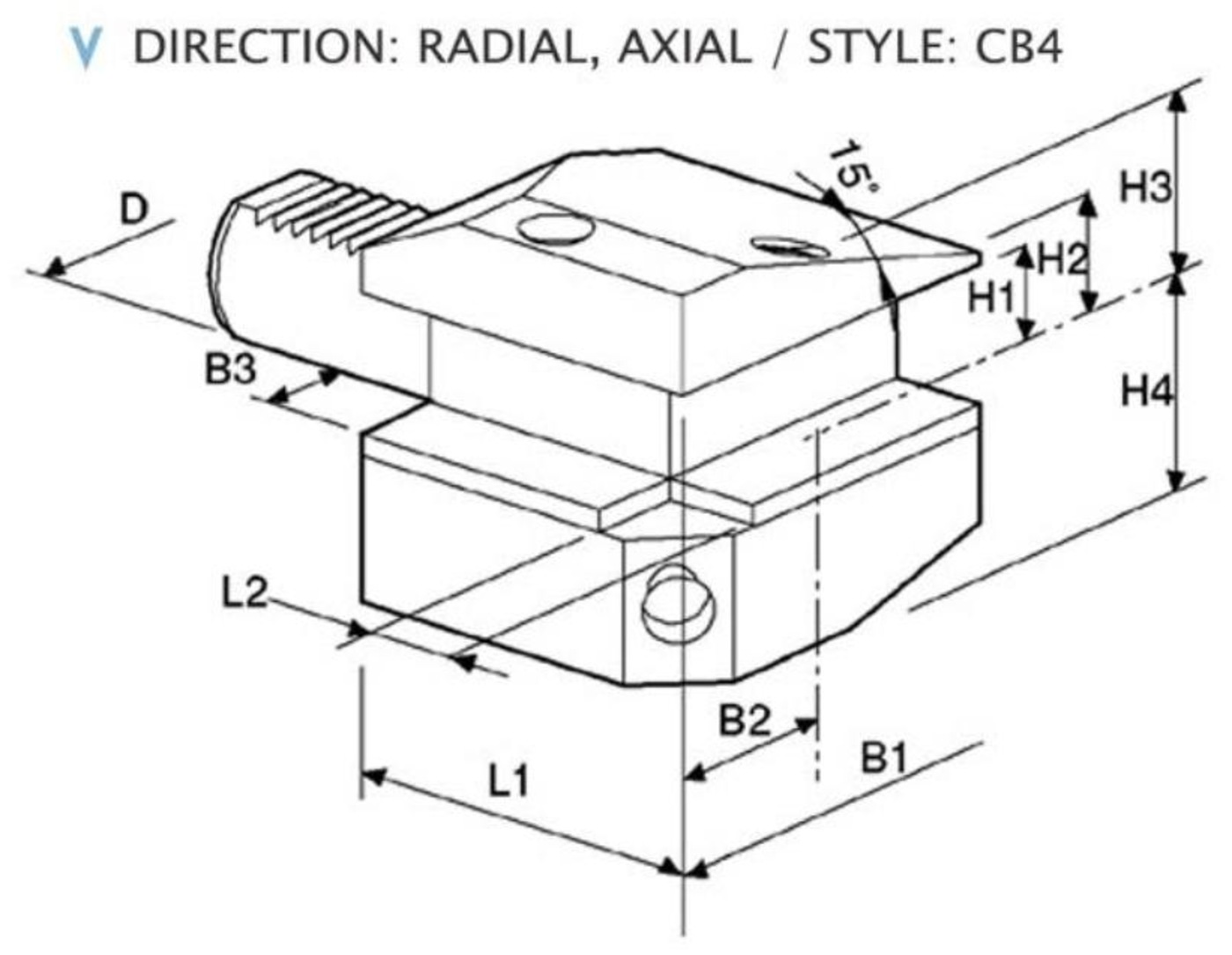

DIN 69880 COMBINED STATIC HOLDERS (STYLE: CB4)
51101368, 51101369, 51101370, 51101371, 51101372
Description
Specification
UNIT: mm
| ITEM NO. | MODEL | D | B1 | B2 | B3 | H1 | H2 | H3 | H4 | L1 | L2 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 51101368 | CB4-20 x 16 (5/8") | 20 | 65 | 40 | 14 | 16(5/8") | 19 | 30 | 25 | 50 | 14 |
| 51101369 | CB4-30 x 20 (3/4") | 30 | 74 | 40 | 18 | 20(3/4") | 22 | 38 | 28 | 70 | 18 |
| 51101370 | CB4-40 x 25 (1") | 40 | 85 | 47 | 22 | 25(1") | 30 | 48 | 32.5 | 100 | 22 |
| 51101371 | CB4-50 x 32 (1-1/4") | 50 | 105 | 55 | 25 | 32(1-1/4") | 35 | 60 | 35 | 120 | 25 |
| 51101372 | CB4-60 x 32 (1-1/4") | 60 | 125 | 62.5 | 30 | 32(1-1/4") | 42.5 | 62.5 | 42.5 | 135 | 30 |
