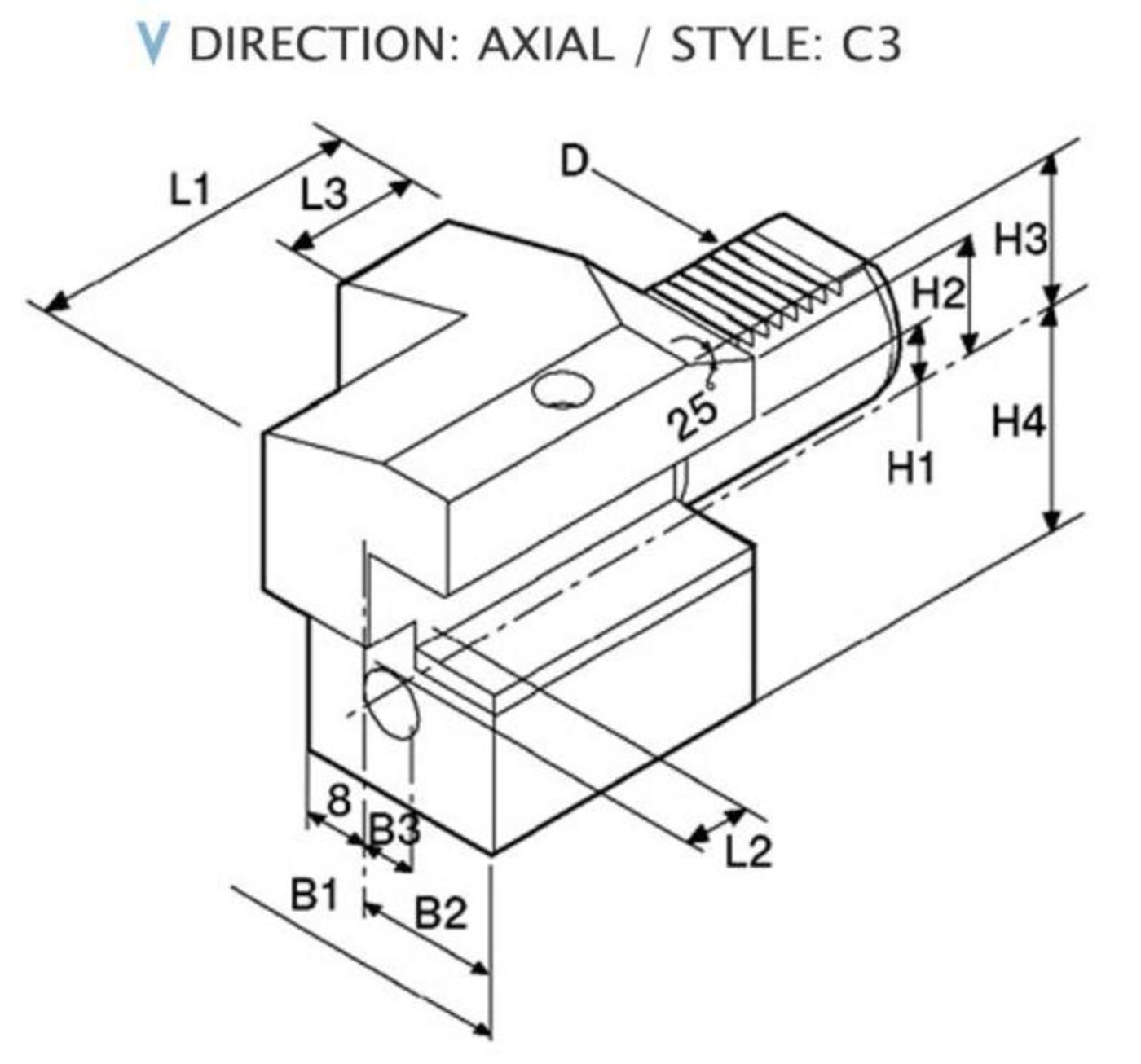

DIN 69880 AXIAL STATIC HOLDERS (STYLE: C3)
51101343, 51101344, 51101345, 51101346, 51101347
Description
Specification
UNIT: mm
| ITEM NO. | MODEL | D | B1 | B2 | B3 | H1 | H2 | H3 | H4 | L1 | L2 | L3 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 51101343 | C3-20 x 16 (5/8") | 20 | 65 | 40 | 26 | 16(5/8") | 23 | 30 | 25 | 50 | 7 | 30 |
| 51101344 | C3-30 x 20 (3/4") | 30 | 70 | 35 | 17 | 20(3/4") | 28 | 38 | 35 | 70 | 10 | 30 |
| 51101345 | C3-40 x 25 (1") | 40 | 85 | 42.5 | 21 | 25(1") | - | 48 | 42.5 | 85 | 12.5 | 30 |
| 51101346 | C3-50 x 32 (1-1/4") | 50 | 100 | 50 | 26 | 32(1-1/4") | - | 60 | 50 | 100 | 16 | 40 |
| 51101347 | C3-60 x 32 (1-1/4") | 60 | 125 | 62.5 | 33 | 32(1-1/4") | - | 62.5 | 62.5 | 125 | 16 | 40 |
