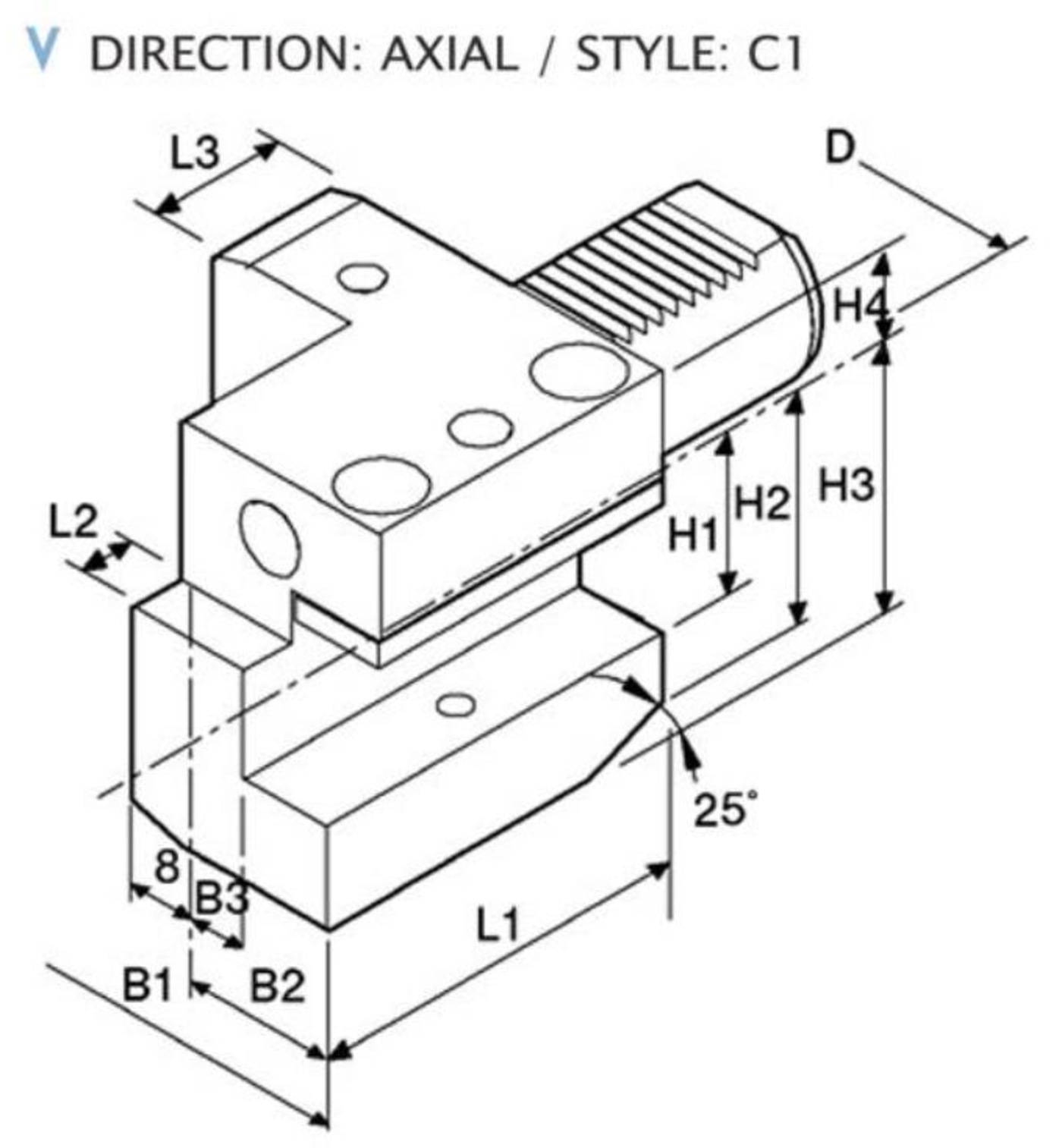

DIN 69880 AXIAL STATIC HOLDERS (STYLE: C1)
51101333, 51101334, 51101335, 51101336, 51101337
Description
Specification
UNIT: mm
| ITEM NO. | MODEL | D | B1 | B2 | B3 | H1 | H2 | H3 | H4 | L1 | L2 | L3 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 51101333 | C1-20 x 16 (5/8") | 20 | 65 | 40 | 26 | 16(5/8") | 23 | 30 | 25 | 50 | 7 | 30 |
| 51101334 | C1-30 x 20 (3/4") | 30 | 70 | 35 | 17 | 20(3/4") | 28 | 38 | 28 | 70 | 10 | 30 |
| 51101335 | C1-40 x 25 (1") | 40 | 85 | 42.5 | 21 | 25(1") | - | 48 | 32.5 | 85 | 12.5 | 30 |
| 51101336 | C1-50 x 32 (1-1/4") | 50 | 100 | 50 | 26 | 32(1-1/4") | - | 60 | 35 | 100 | 16 | 40 |
| 51101337 | C1-60 x 32 (1-1/4") | 60 | 125 | 62.5 | 33 | 32(1-1/4") | - | 62.5 | 42.5 | 125 | 16 | 40 |
