RADIAL DRILLING & MILLING HEADS (90°) - SPUR COUPLING - MT

51101731, 51101732, 51101733, 51101734, 51101735, 51101736, 51101737, 51101738, 51101739, 51101740, 51101741, 51101742, 51101743, 51101744

UNIT: mm

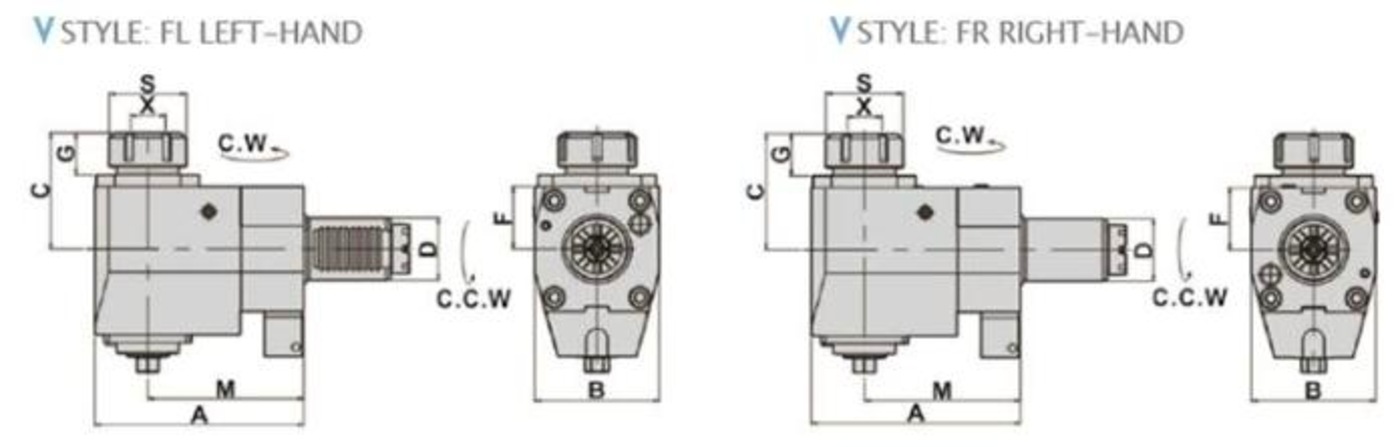

ITEM NO.	MODEL	D (DIN 69880)	X (CAPACITY)	S	MAX. RPM	i	A	B	C	F	G	M
51101731	FR20MT1645	20	1-10 ER16	30	5000	1:1	67	50	63	27	24.5	45
51101732	FL20MT1645	20	1-10 ER16	30	5000	1:1	67	50	63	27	24.5	45
51101733	FR20MT1670	20	1-10 ER16	30	5000	1:1	92	50	63	27	24.5	70
51101734	FL20MT1670	20	1-10 ER16	30	5000	1:1	92	50	63	27	24.5	70
51101735	FR30MT2565	30	1-16 ER25	42	5000	1:1	97	64	74.5	41	26	65
51101736	FL30MT2565	30	1-16 ER25	42	5000	1:1	97	64	74.5	41	26	65
51101737	FR30MT2585	30	1-16 ER25	42	5000	1:1	117	64	74.5	41	26	85
51101738	FL30MT2585	30	1-16 ER25	42	5000	1:1	117	64	74.5	41	26	85
51101739	FR40MT3265	40	2-20 ER32	50	5000	1:1	99	80	71	40	23	65
51101740	FL40MT3265	40	2-20 ER32	50	5000	1:1	99	80	71	40	23	65
51101741	FR40MT3285	40	2-20 ER32	50	5000	1:1	119	80	71	40	23	85
51101742	FL40MT3285	40	2-20 ER32	50	5000	1:1	119	80	71	40	23	85
51101743	FR40MT32100	40	2-20 ER32	50	5000	1:1	134	80	71	40	23	100
51101744	FL40MT32100	40	2-20 ER32	50	5000	1:1	134	80	71	40	23	100
