RADIAL DRILLING & MILLING HEADS (90°) - SPUR COUPLING - MT

51101712, 51101713, 51101714, 51101715, 51101716, 51101717, 51101718, 51101719, 51101720, 51101721, 51101722

UNIT: mm

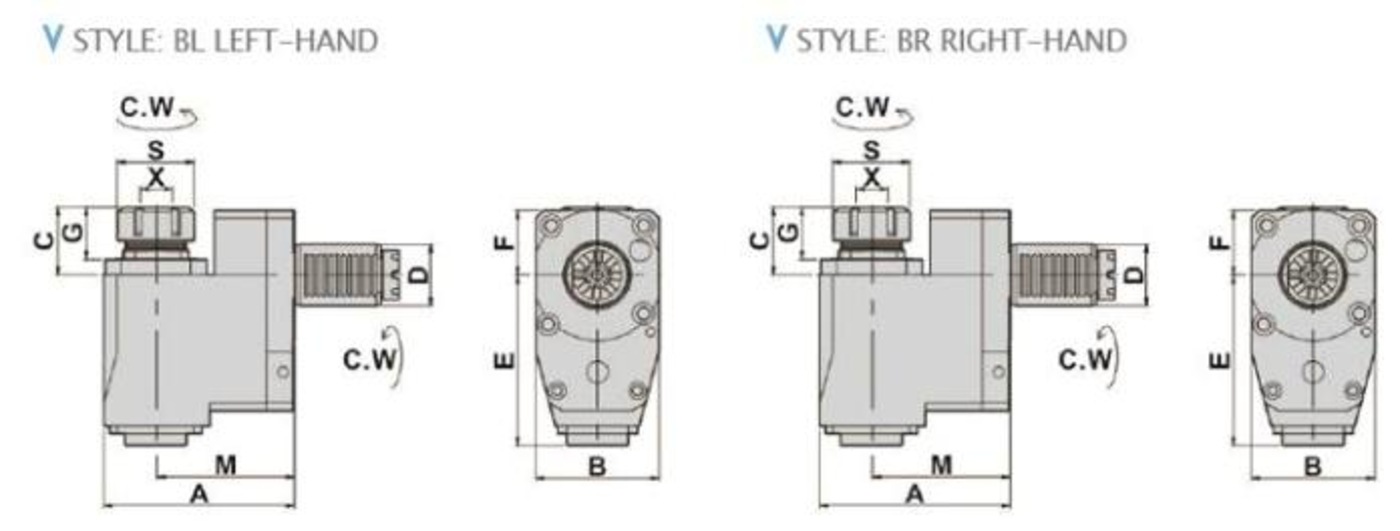

ITEM NO.	MODEL	D DIN 69880	X (CAPACITY)	S	MAX. RPM	i	A	B	C	E	F	G	M
51101712	BR20MT1660	20	1-10 ER16	30	5000	1:1	83	50	35	70	27	27	60
51101713	BL20MT1660	20	1-10 ER16	30	5000	1:1	83	50	35	70	27	27	60
51101714	BR30MT2572	30	1-10 ER25	42	5000	1:1	95	60	42	76	32	29	72
51101715	BL30MT2572	30	1-10 ER25	42	5000	1:1	95	60	42	76	32	29	72
51101716	BR40MT3290	40	2-20 ER32	50	5000	1:1	124	80	44	110	42	34	90
51101717	BL40MT3290	40	2-20 ER32	50	5000	1:1	124	80	44	110	42	34	90
51101718	BR50MT4090	50	3-26 ER30	63	5000	1:1	129	86	49	112	45	39	90
51101719	BL50MT4090	50	3-26 ER30	63	5000	1:1	129	86	49	112	45	39	90
51101720	BR60MT50106	60	10-34 ER50	78	5000	1:1	147	104	83	118	54	50	106
51101721	BL60MT50106	60	10-34 ER50	78	5000	1:1	147	104	83	118	54	50	106
51101722	BL60MT50135	60	10-34 ER50	78	5000	1:1	183	104	73.5	123	54	51	135
