AXIAL TAPPING HEADS (0°)
51101700, 51101701, 51101702, 51101703
Description
Specification
UNIT: mm

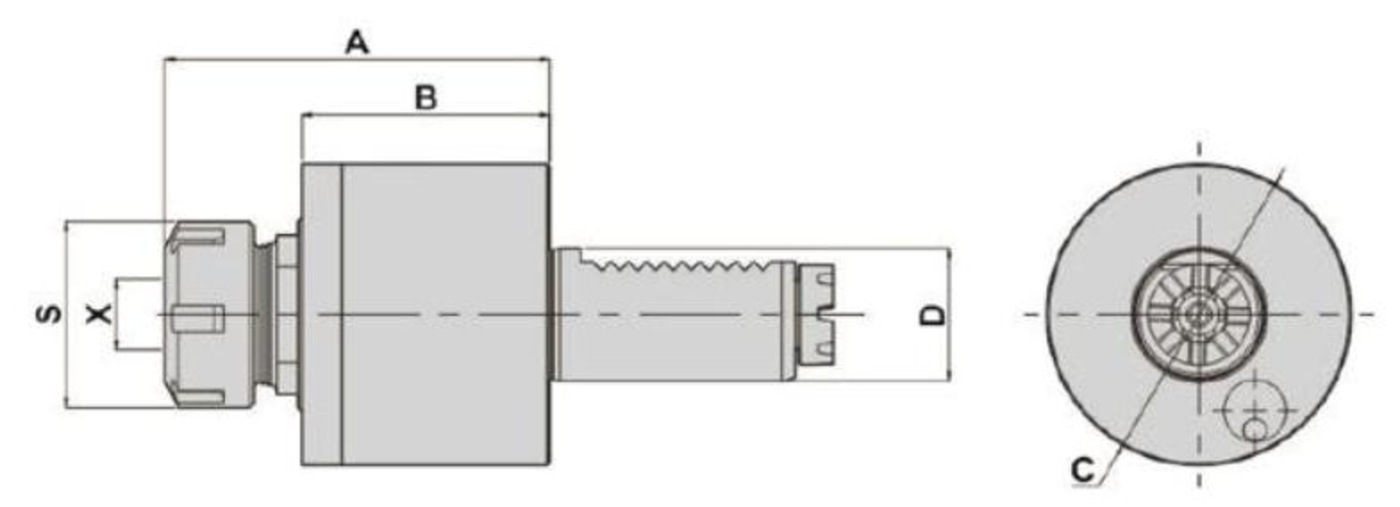

| ITEM NO. | MODEL | D (DIN 69880) |
X (CAPACITY) |
S | MAX. RPM |
i | A | B | C |
|---|---|---|---|---|---|---|---|---|---|
| 51101700 | DA20MT16 | 30 | 1-10 ER16 | 30 | 3000 | 1:1 | 108 | 71.5 | 68 |
| 51101701 | DA30MT20 | 40 | 1-13 ER20 | 35 | 3000 | 1:1 | 95.5 | 55 | 86 |
| 51101702 | DA30MT25 | 50 | 1-16 ER25 | 42 | 3000 | 1:1 | 123 | 81.5 | 96 |
| 51101703 | DA40MT32 | 60 | 2-20 ER32 | 50 | 3000 | 1:1 | 158.5 | 88.5 | 116 |
