RADIAL DRILLING & MILLING HEADS - SET BACK (DIN 5482 / STYLE: BR, BL)

51101247, 51101248, 51101249, 51101250, 51101251, 51101252, 51101253, 51101254, 51101255, 51101256, 51101257, 51101258, 51101259, 51101260, 51101261, 51101262

Description

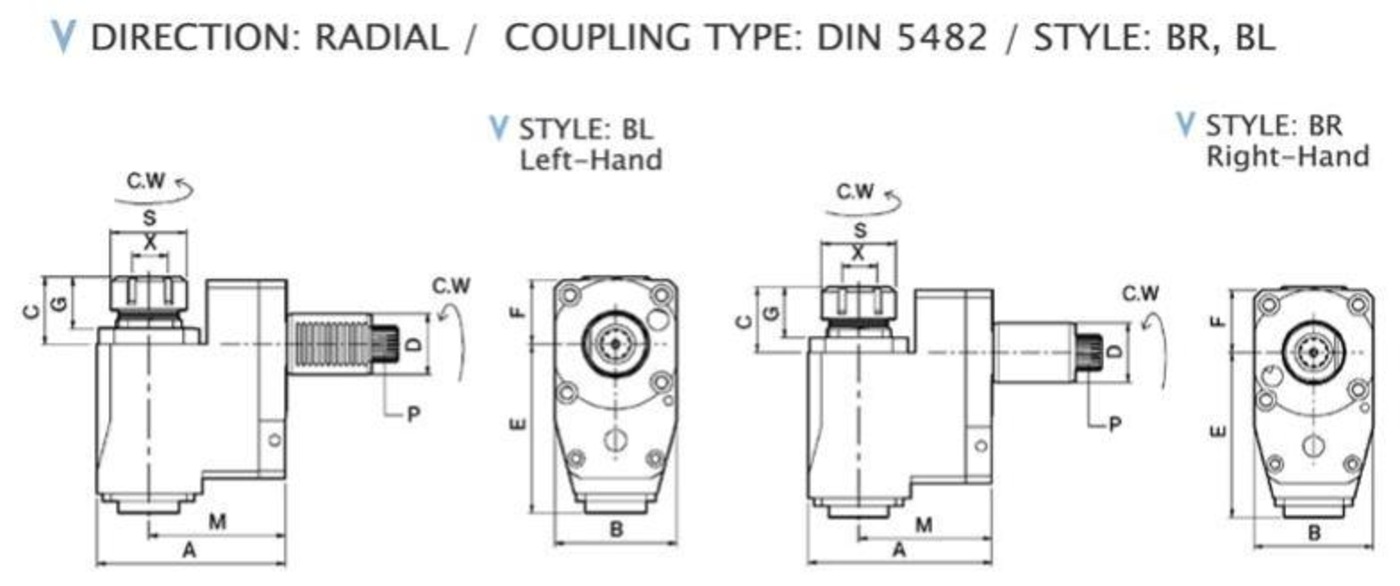

Specification

UNIT: mm

ITEM NO.	MODEL	D (DIN 69880)	X (CAPACITY)	S	MAX. RPM	i	A	B	C	E	F	G	M	P (DIN5482)
51101247	BR3054822569	30	1-16 ER25	42	5000	1:1	95	60	42	75.5	31.5	28.5	69	B15 x 12
51101248	BL3054822569	30	1-16 ER25	42	5000	1:1	95	60	42	75.5	31.5	28.5	69	B15 x 12
51101249	BR4054823290	40	2-20 ER32	50	5000	1:1	124	80	44	110	42	34	90	B17 x 14
51101250	BL4054823290	40	2-20 ER32	50	5000	1:1	124	80	44	110	42	34	90	B17 x 14
51101251	BR5054824090	50	3-26 ER40	63	5000	1:1	129	86	49	112	45	39	90	B20 x 17
51101252	BL5054824090	50	3-26 ER40	63	5000	1:1	129	86	49	112	45	39	90	B20 x 17
51101253	BR60548250102	60	10-34 ER50	78	5000	1:1	147	104	83	118	54	42	102	B25 x 22
51101254	BL60548250102	60	10-34 ER50	78	5000	1:1	147	104	83	118	54	42	102	B25 x 22

RADIAL TAPPING HEADS–SET BACK

UNIT: mm

ITEM NO.	MODEL	D (DIN 69880)	X (CAPACITY)	S	MAX. RPM	i	A	B	C	E	F	G	M	P (DIN5482)
51101255	TBR3054821669	30	1-10 ER16	30	3000	1:1	95	60	44	75.5	31.5	32	69	B15 x 12
51101256	TBL3054821669	30	1-10 ER16	30	3000	1:1	95	60	44	75.5	31.5	32	69	B15 x 12
51101257	TBR4054822090	40	1-13 ER20	35	3000	1:1	124	80	50	110	42	34	90	B17 x 14
51101258	TBL4054822090	40	1-13 ER20	35	3000	1:1	124	80	50	110	42	34	90	B17 x 14
51101259	TBR5054822590	50	2-16 ER25	42	3000	1:1	129	86	54	112	45	36	90	B20 x 17
51101260	TBL5054822590	50	2-16 ER25	42	3000	1:1	129	86	54	112	45	36	90	B20 x 17
51101261	TBR60548232102	60	2-20 ER32	50	3000	1:1	147	104	87	118	54	40	102	B25 x 22
51101262	TBL60548232102	60	2-20 ER32	50	3000	1:1	147	104	87	118	54	40	102	B25 x 22
