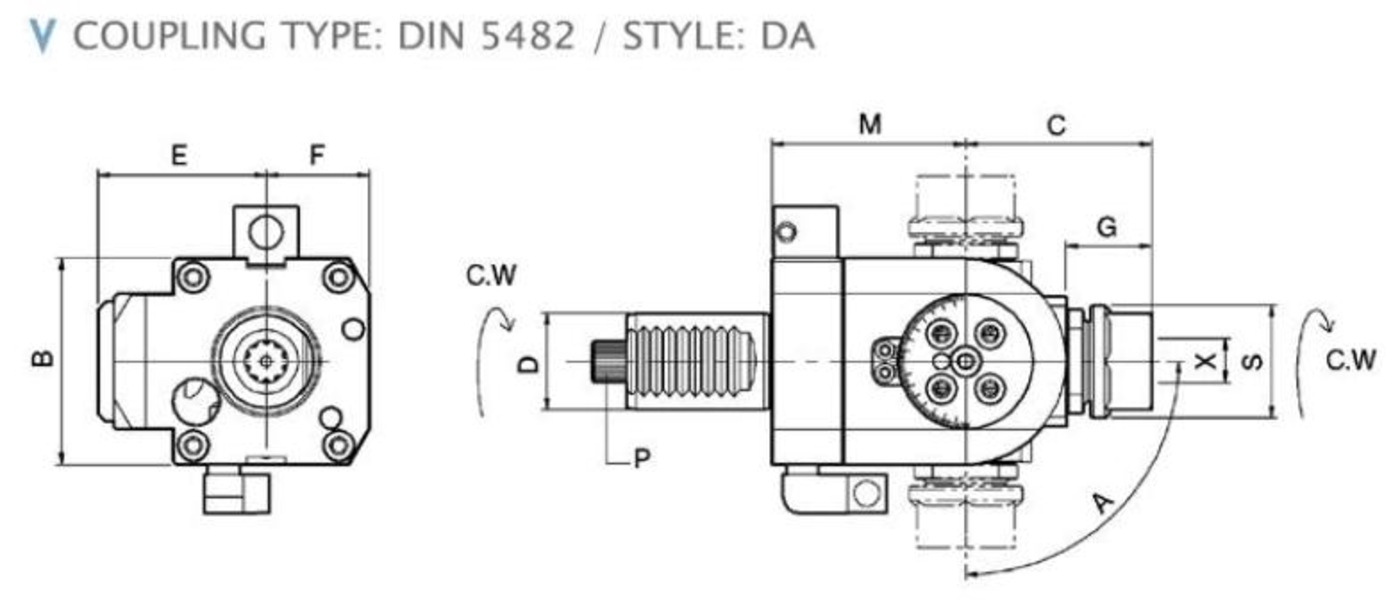

ANGULAR HEADS (DIN 5482 / STYLE: DA)
51101240, 51101241
Description
Specification
UNIT: mm
| ITEM NO. | MODEL | D (DIN 69880) |
X (CAPACITY) |
S | MAX. RPM |
A | B | C | E | F | G | M | P (DIN5482) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 51101240 | DA30548220B | 30 | 1-13 ER20 | 35 | 4000 | ±90° | 64 | 59 | 54 | 32 | 27 | 67 | B15 x 12 |
| 51101241 | DA40548225B | 40 | 1-16 ER25 | 42 | 4000 | ±90° | 76 | 65 | 65 | 38 | 29 | 70 | B17 x 14 |
