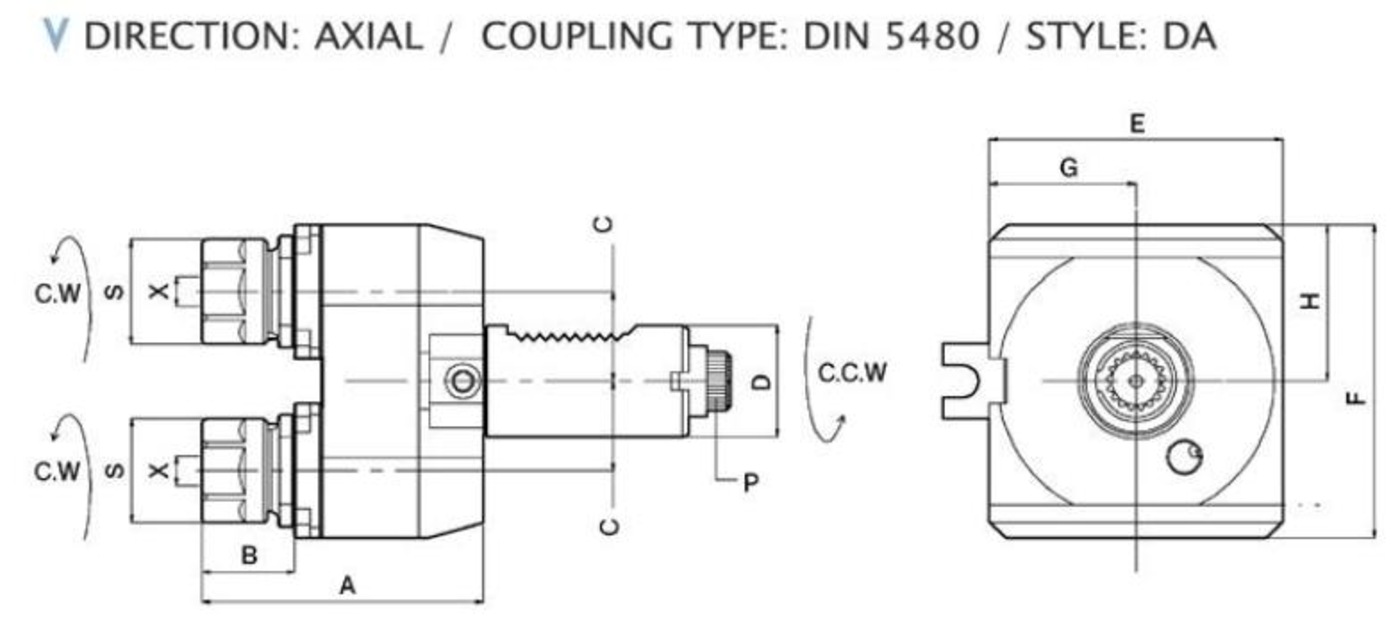

AXIAL DRILLING & MILLING HEAD - DOUBLE COLLETS, Y OFFSET (DIN 5480 / STYLE: DA)
51101227
Description
Specification
UNIT: mm
| ITEM NO. | MODEL | D (DIN 69880) |
X (CAPACITY) |
S | MAX. RPM |
A | B | C | E | F | G | H | P (DIN5480) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 51101227 | DA30548016DY | 30 | 1-10 ER16 | 30 | 4000 | 83 | 58.5 | 24 | 80 | 95 | 40 | 47.5 | W16 x 0.8 |
